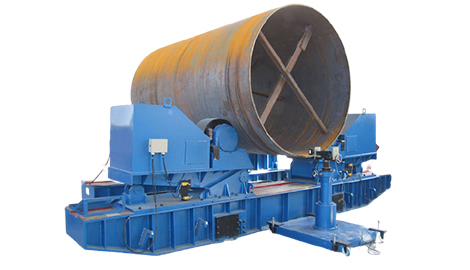

100-1200T Anti Creep Welding Rotator

It adopts elevating type for anti-creep, by using one roller’s up and down work to adjust center distance of work piece to coincide with center line of rotator, thus to realize anti-creep purpose.
The sensor adopts Germany high precision displacement sensor with high precision, long service time and good linearity etc.
Electric control system equipped Siemens or ABB low voltage device, with high stability and strong anti-jamming capability.
It is equipped with detector which can test axial movement professionally and can calculate according to detection signal to control the creeping amount of work-piece. This device is easy to install and convenient to adjust.
Availability:
Quantity:
Product Description

Description:

It adopts elevating type for anti-creep, by using one roller’s up and down work to adjust center distance of work piece to coincide with center line of rotator, thus to realize anti-creep purpose.

The sensor adopts Germany high precision displacement sensor with high precision, long service time and good linearity etc.

Electric control system equipped Siemens or ABB low voltage device, with high stability and strong anti-jamming capability.

It is equipped with detector which can test axial movement professionally and can calculate according to detection signal to control the creeping amount of work-piece. This device is easy to install and convenient to adjust.


Technical Parameter:

Type

Max  load weight(T)

Range of suitablewrokpiece(mm)

Diameter and width

Roller linear speed(mm/min)

Speed Comtrol

Motor power(kw)

Roller size

GLHKA-100

100

850-6500

580*200

100-1000

VFD

2*2.2

GLHKA-200

200

850-6500

600*240

100-1000

2*2.2

GLHKA-300

300

1000-6500

640*250

100-1000

2*3

GLHK-400 400 1000-6000 700*420
100-1000 2*5.5

GLHKA-500

500

1200-6500

700*300

100-1000

2*7.5

GLHKA-800

800

1200-6500

800*350

100-1000

2*11

GLHKA-1000

1000

1200-6500

850*500

100-1000

2*15

GLHKA-1200

1200

1200-6500

850*500

100-1000

2*15
