1000kg L Type Welding Work Positioner

The L-type three-axis welding positioner makes the workpiece in the best welding or assembly position through the rotation, titling and lifting of the worktable. It can be combined with other welding equipment to form a semi-automatic, full automatic welding machine.
Availability:
Quantity:
Product Description

1


Elevating Welding Positioner


The L-type three-axis welding positioner makes the workpiece in the best welding or assembly position through the rotation, titling and lifting of the worktable. It can be combined with other welding equipment to form a semi-automatic, full automatic welding machine.

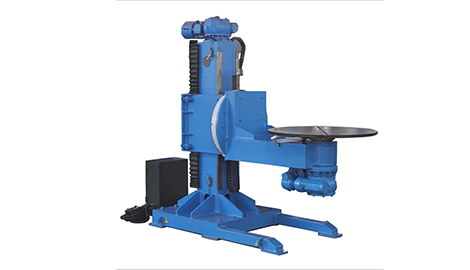

       The L-shaped welding positioner is mainly composed of lifting parts, L-shaped turning parts, rotating parts, conductive devices and electrical control parts.


Model HBSF-10 HBSF-25 HBSF-50 HBSF-75 HBSF-100
Load Cap.(ton) 1.0 2.5
5.0 7.5
10
Table Dia.(mm) 900 900 1200 1800 1800
Height Adjustment (mm) 800-1900 800-1900
800-1900 820-2300
820-2300
Rotation Speed(rpm) 0.15-1.5 0.15-1.5 0.02-0.2 0.02-0.2 0.02-0.2
Elevation Speed(rpm) 1 1 0.45 0.45 0.45
Max GC (mm) 300 300 300 300 300
Max Eccentricity(mm) 200 200 200 200 200
Power(kw) 3.5 4.0
8.0 12.0
18.5



2


1.Strong load-bearing capacity

  After the positioner’s worktable uses high-strength plates, it carried with heat treatment and finishing after welding. The table rotation adopts slewing support, which has strong load-bearing capacity.


8


2. Ensure the rail surface is clean and lubricated.

    Elevating guide surface through the oil filling oil cup, and a protective cover covering and ensure a clean track surface, to ensure lubrication.


7


3.Stepless variable frequency speed control

Schneider frequency converter is used to realize variable frequency speed control of worktable slewing and overturning.
