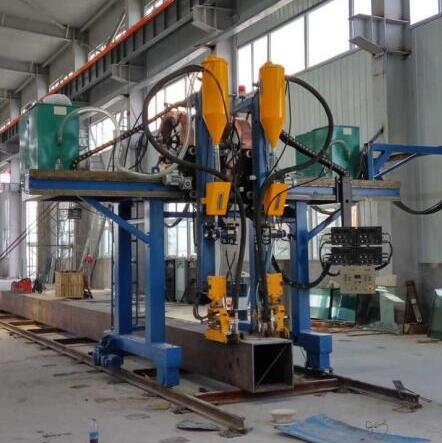

Cantilever Type H Beam Auto-Welding Machine

The working principle of the double column welding machine is similar with gantry-type welding machine. The difference is that, for gantry welding machine, the welding is accomplished between two rails; for double column welding machine, the welding is accomplished outside the rails. It can weld the H-beam which is higher than 1.5m, no limit for beam height. When it is single arc single wire welding , the welding power can be settled on the machine trolley.
Availability:
Quantity:
Product Details

SXBH20

1513582396319_777

1.The web height of H beam has no limited, it can weld large size H beam.

2. The gantry moving is frequency speed control, the speed can be adjusted according to the welding technology requirement with convenience.

3. Moving trolley is composed by union of two moving beams. The moving trolley is driven by two motors speed-reducer, the system is double driving, which insure the moving stable and reliable.

4. Seam tracking device is placed under welding beam, it has the function of automatic tracking, which can keep suitable distance between welding gun and welding seam, it has auto compensation function for H-beam’s deformation.

1513582396319_777 (1)

Model

SXBH20

Rail gauge

2000mm

Web height

200-2000mm

Flange width

200-1000mm

Work-piece length

4000~15000mm or as user’s request

Model of welding machine

Zhouxiang ZX5-1000/ Zhouxiang MZ-1250/ American Lincoln DC-1000

Welding type

Boat type welding

Welding speed

0.15~1m/min

Returning speed

3m/min

Overall power

10kW

Above are our standard model, it can be designed and manufactured according to customer’s request.
