Cantilever welding machine

Cantilever welding machine

Quantity:
Product Description

The cantilever welding machine is controlled by imported AC frequency converter, which works stably and reliably. The function of quick returning is available. The tracking arc-guide mechanism is designed as three-axis tracking, which can guarantee centering the welding seam correctly and no arc deflection. Coming with the welding flux automatic transmission recovery system, the main machine and welder adopts integrated linkage control, which facilitates operating and has the advantage of high efficiency.

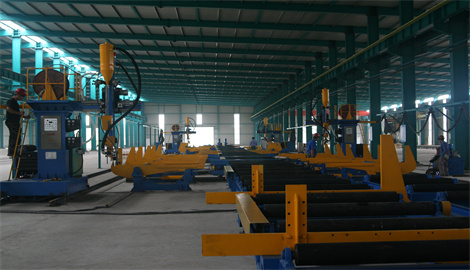

There are two welding areas in the heavy duty production line, each welding area is combined by two sets of cantilever welding machines, two groups of 60° overturning machine, and one group of convey machine.

Technical Parameters

Model

XBH-1150

Height of Web Plate

200-2000mm or above 2000mm

Width of Flange Plate

200-1000mm

Length of H Steel

6000-15000mm

Model of Welding Machine

One Set of Zhouxiang ZX5-1000/ Zhouxiang MZ-1250/ American Lincoln DC-1000

Welding Type

Boat-type Welding Seam

Welding Speed

0.3-1.5m/min

Returning Speed

3m/min

Distance of Guide Rail

1150mm

Power of Complete Machine

4.75kw(Not including welding machine)

As a China-based cantilever welding machine manufacturer, at Zhouxiang Group we also offer 180º hydraulic overturning machine, H steel shot blasting and cleaning machine, four roller rolling machine, CNC plasma beveling machine, and more.
