Diaphragm assembly machine

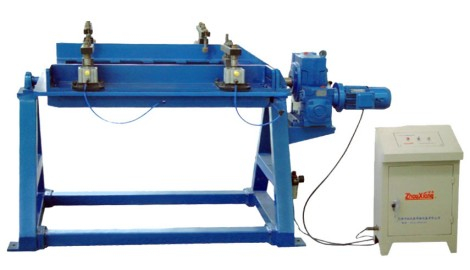

Diaphragm assembly machine is special used on the box beam line. It is composed of support part, overturn table, positioning plate, pneumatic press part, overturn motor reducer, gas circuit and control system.
Availability:
Quantity:
Product Description


6358553319764161689386019

Technical Functions:

This machine is a special equipment for the assembly and welding of the diaphragm of box girder. Cylinder is used to press and position when assembling, then spot welding is carried out. After welding one side, working table can turn 180 degrees electrically to horizontal position of another side to weld. Workpiece can be removed by releasing the cylinder after assembling and welding finish.


Product Parameters:

Working table overturning degree

±180°

Working table load capacity

1500kg

Work-piece size

300~1200mm

Diaphragm thickness

20-80mm

Overturning speed

1.5r/min

Motor power

0.75kw
