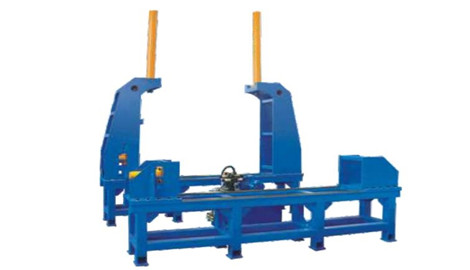

End Face Milling Machine

End face milling machine is used to weld or milling the end face of H-section steel and box steel. This machine has advantages of convenient operation, simple structure and quick adjustment.
Availability:
Quantity:
Product Description

516285317422392558_副本


Product Introduction:

Model DX1215 face milling machine is composed of machine body, sliding table, stand column, elevating table,milling head,electrical control system etc.
The machine body is of welding structure, annealing treatment. It has the characteristic of high intensity, small deformation. The machine body rail, one is rectangle rail which has big capacity, and one is V-type rail which has high precision. The slipway is casting steel stricture which has good wear resistance. The slipway rail and machine body rail has good cooperation precision after grinding.


Technology Parameter:

Items

DX1215



Horizontal stroke (mm)

1500

Horizontal feed speed (mm/min)

54.8~548

Horizontal backward speed (mm/min)

822

Horizontal feed motor power (kw)

P=3Kw/4Kw; 960/1500rpm

Elevating stroke (mm)

1200

Vertical feed speed (mm/min)

53~530

Vertical feed motor power (kw)

P=1.5kW; 1400rpm

Milling head main shaft turning speed (r/min)

80~400

Milling motor power (kw)

5.5

Main shaft expansion capacity (mm)

70

Milling knife diameter (mm)

200



H7a5d8be4c6ce437aac5a7694347f12baK

operation panel_副本
