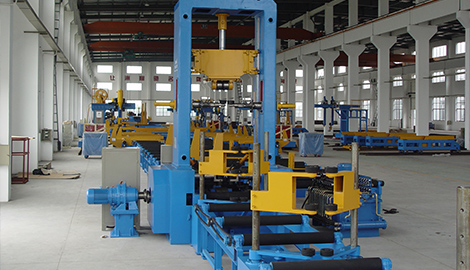

Heavy Duty H Beam Assembling Machine

This heavy duty H beam assembling machine can produce H beam with larger size according to customers’requirement, the maximum size of web height can reach 3 meter. It is equipped with auxiliary supporting device for large web.
Availability:
Quantity:
Inquire Add to Basket

Product Description

 HTB1yUMXMVXXXXbzXXXXq6xXFXXXh

1513582396319_777

Web height

200~3000mm

Web thickness

6~70mm

Flange width

200~1000mm

Flange thickness

6~80mm

Work-piece length

6000~15000mm or as user’s request

Assembly speed

0.65~6.5m/min

Power

Single Assembly Machine:11kW (not including welding machines)

Assembly Machine matched with Heavy Duty Production Line:16.5kW (not including welding machines)

Above are our standard model, it can be designed and manufactured according to customer’s request.

1513582396319_777


   1.The automatic centering of flange and web adopts hydraulic motor and gear, with high

   centering precision and good retentivity. All of the operation are centralized on the electric

   control button panel, with easy and convenientoperation and precise positioning.


   2.The main transmission part adopts cycloid pinwheel and Taiwan TAIAN brand inverter, the

   assembly speed can be adjusted between 0.5—6 M/min.


   3.The main components of this machine are welded structure parts with large strength and light

   weight and the key components have been stress relieved, which don’t deform easily.

1513582407266_272

1513582410008_321

1513582416010_149

1513582422880_912

1513582425285_169

1513582429002_75
