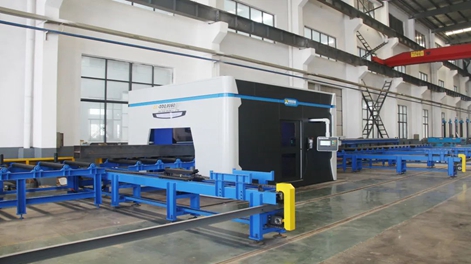

Multi-Profile Cutting Machine




As a special processing equipment for finished profiles, Zhouxiang multi-profile cutting machine is widely used in the steel structure assembly building.

Multi-profile cutting machine can realize automatic profile loading, automatic feeding, automatic cutting and automatic conveying operation. High-end three-dimensional space flexible robotic cutting application realizes bevel cutting function, and the profile and torch adopt positioning function; the cutting machine can realize thermal cutting of H-beam, I-beam, channel and angle steel in any lap form and open hole, and the cutting methods are plasma and flame cutting.




Equipment Technical Specifications


微信图片_20230414162244


Technical Specifications

Cutting Type H-Beam, Channel, Angle Steel, Etc
Cutting Form Fine Plasma And Flame
Effective Cutting Length ≤15000MM
Cutting Speed 10-3500MM/MIN
Cutting Thickness ≤ 20MM
Cutting Length Deviation ±1.5MM

* Angle: 100-400MM.

Round pipe diameter:100-600MM.

Square/rectangular pipe: 100-500MM.

H-beam: wing plate 100-300MM, web plate 100-600MM




Control System Functions


微信图片_20230414162247

微信图片_20230414162252


The main body of this control system is Japanese Fanuc robot and equipped with offline programming simulation software. It has humanized interactive interface, simple operation, intuitive 3D imaging; dynamic cutting simulation at a glance, breakpoint memory with the original trajectory back and then return to cut function; fault self-diagnosis and operation error intelligent discrimination, automatic alarm display, automatic diagnosis function; rich, expandable macro program call and editing function; Chinese display, human-machine dialogue function. With online and offline programming mode, it can exchange information with the outside through U disk, network, etc., and can input temporary modification manually. The loading and discharging of this equipment and other auxiliary function units are controlled by the PLC of the robot expansion unit, and the robot communicates with each other through the ETHCAT network to exchange status information and operation instructions, which is integrated and highly automated.
