Welding positioner

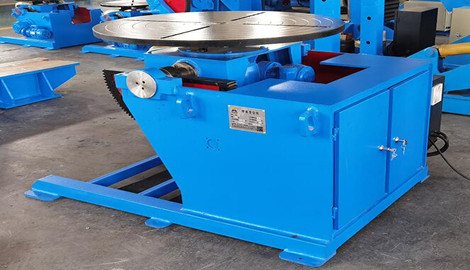

Welding positioner is widely used for welding and holding and assembling of complex work piece. It is an excellent assistance device for mechanical industry especially steel structure manufacturing industry such as small chemical vessel manufacturing. HBZ series welding positioner is composed of slewing gear of table, overturning gear of table, electrical control assembly and conduction of welding current. It has beautiful appearance and compact structure.
Quantity:
Product Description





type

Rated load(kg)

Rotating speed(rpm)

Overturning angle(°)

Size of working table(mm)

Motor power

rotating

overturning

HBZ-1

100

0.12-1.2

0-90°

400

0.18

0.18

HBZ-3

300

0.2-2

0-90°

600

0.37

0.37

HBZ-6

600

0.09-0.9

0-90°

1000

0.75

0.75

HBZ-10

1000

0.05-0.5

0-120°

1200

1.1

1.5

HBZ-30

3000

0.05-0.5

0-120°

1400

1.5

1.5

HBZ-50

5000

0.05-0.5

0-120°

1500

2.2

3

HBZ-100

10000

0.017-0.17

0-120°

2000

3

5.5

HBZ-200

20000

0.015-0.15

0-120°

2300

5.5

7.5







The welding positioner includes various types and it is usually combined with automatic welding
system, such as manipulator and welding machine . With gyration and upturning of working
table,the welding and fitting can be located at the right position. If connected with other welding
devices,it can be turned into a half-automatic or full automatic welding machine. The gyration of
working table can use electromagnetic speed variation or frequency control.


Because of eccentricity and gravity, it is better to choose a bigger type for long workpieces or
those with too much gravity center deviation.The shape and weight of workpieces, process and
working method are provided, our company shall supply a prompt scheme your reference.
