CNC Flame Cutting Machine

This series of flame cutting machine is a high efficiency and high performance equipment, which uses gantry type, single drive or double drive and combines cnc control, precision mechanism and oxygen cutting. This cnc flame cutting machine uses advanced cnc system from abroad, such as Spanish FAGOR and American Hypertherm. Its excellent cutting parameters, reliable and stable features ensure the perfect cutting effect.
Availability:
Quantity:

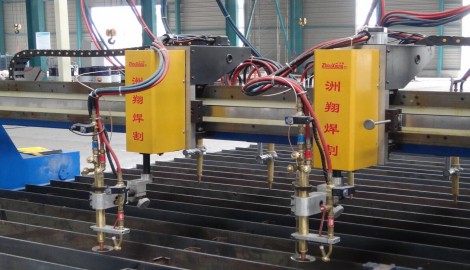

Product Display

qiege1_看图王



1513582396319_777 (1)



Model CNC/GDZ-3000 CNC/GDZ-4000 CNC/GDZ-5000
Drive Mode Double Double Double
Cutting Torch No. 2 2 2
Straight Cutting Torch No.
9 9 According to user's request
Rail Gauge 3000 4000 5000
Effictive Cutting Width 230-2200mm 230-3200mm 230-4200mm
Rail Length 15000
Cutting Depth 6-100 6-100 According to user's request
Material Stainless Steel, Carbon Steel
Cutting Gas Oxygen, Propane or Acetylene
Free Running Speed 4000mm/min
Cutting Precision ±0.5mm/min
Repeatability Precision ±0.5mm/min


1513582396319_777



切割10_看图王



1513582396319_888

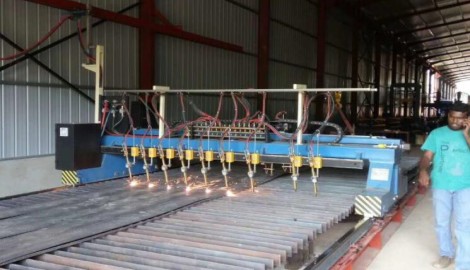

Customer Case

火焰切割机

Company Profile

photobank (4)QQ截图20230329142629photobank (5)photobank (7)photobank (6)photobank (8)photobank (9)
