H Beam Welding Line

H-beam vertical assembling, welding and straightening multi-function integrated machine is a high-efficiency equipment for the production of welded H-beams. It can simultaneously complete H-beam assembly, submerged arc welding, and flange plate welding deformation on the same machine.The machine occupies a small area which can save installation space. It saves the hoisting and turning time between each process with single machine,then the efficiency is greatly improved, and the cost is reduced. It is a high-tech, economical and practical H-beam production equipment.

Availability:

Quantity:



Inquire Add to Basket

Product Display

Machine Parameters
Length	26000mm

Width	2400mm
Height	5000mm
Assembling welding speed	0.35-1.9m/min
Main Machine Power	4KW
Pump Station Power	5.5KW

H-beam Size
Positioner	Parameter	legend

Advantages

Introduction

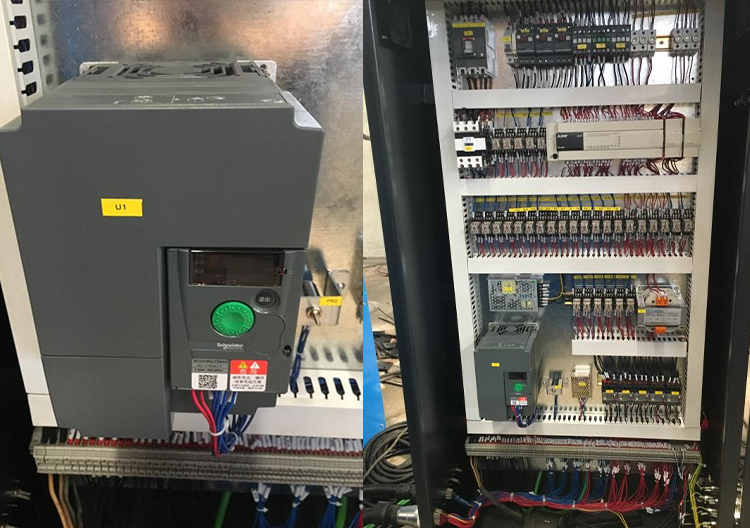

Schneider inverter with high quality from France

The French high-quality Schneider inverter can effectively realize the automatic assembly, welding and correction of plates of different thicknesses by changing the working speed.

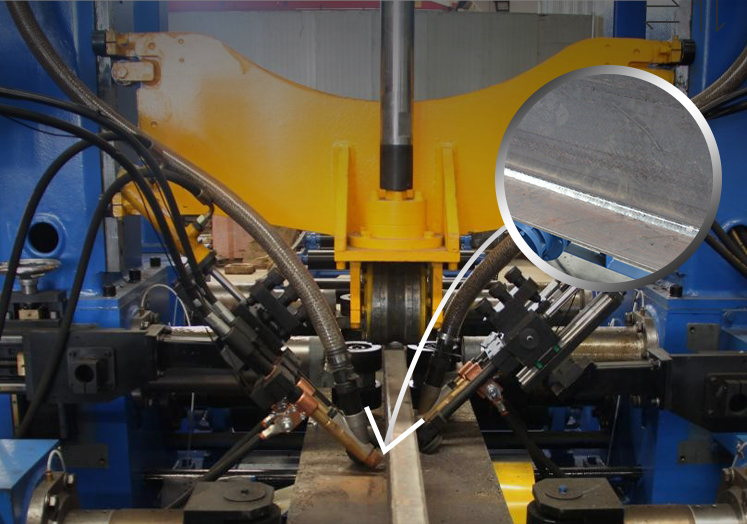

Adjust horizontal and vertical arbitrarily

Firm welding torch fix mechanism is set up separately, it not only can adjust height and horizontal moving position, also can adjust the angle of welding torch on two direction, it guarantees the nice seam form

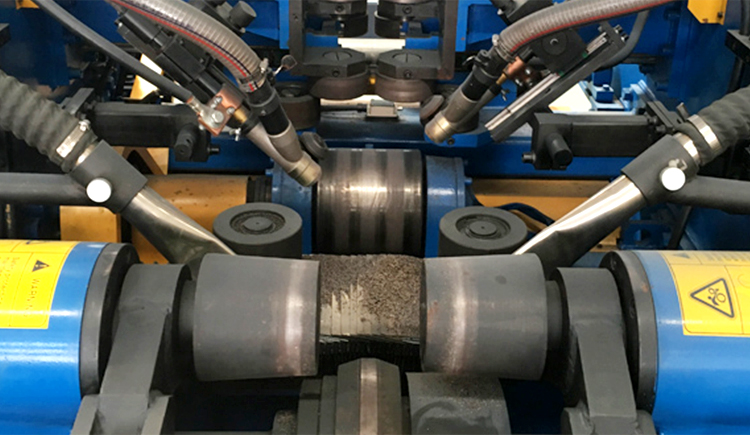

Various welding forms

The welding method can be based on the customer's sheet thickness and actual requirements
