Zhouxiang Multi-Torch Gantry Welding Machine for Marine T-Beams

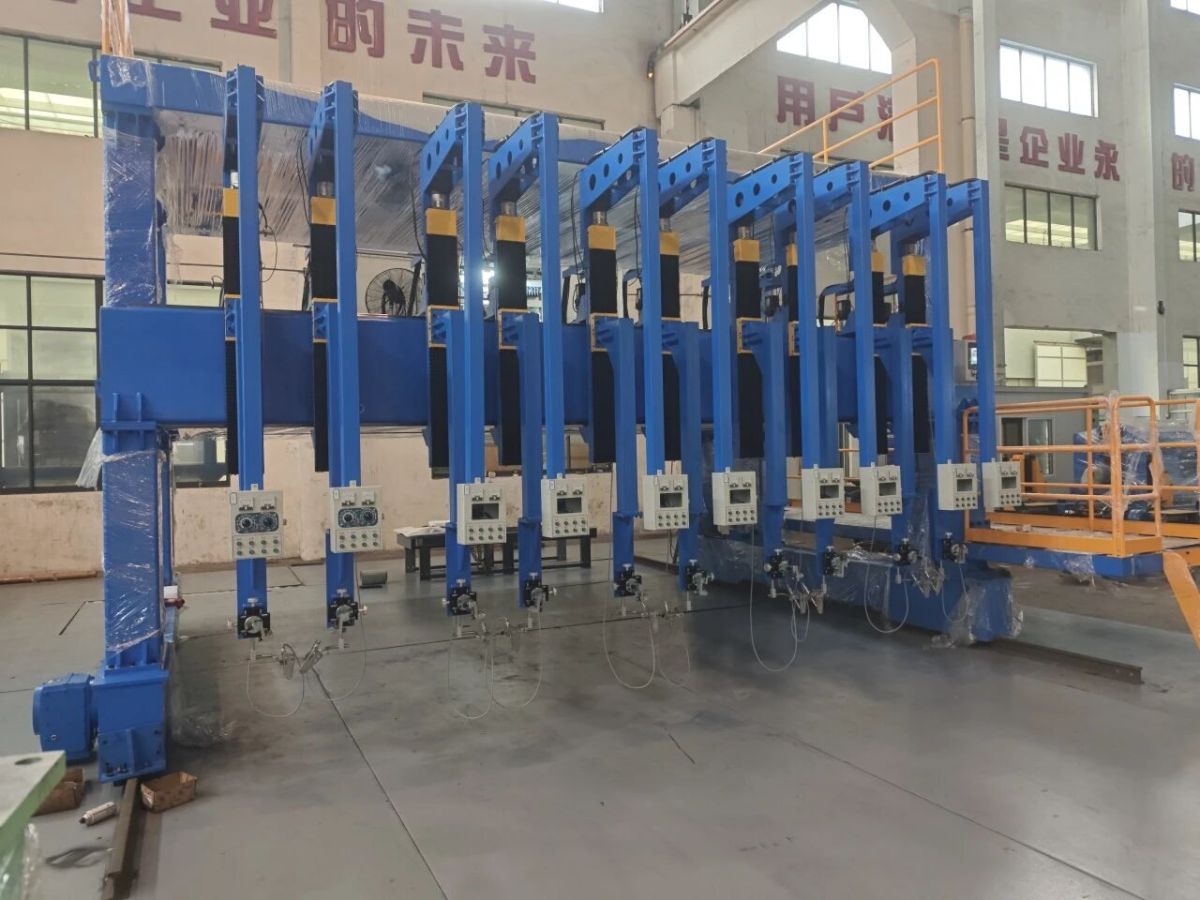

Recently, the production of multiple Zhouxiang multi-torch gantry welding machines for marine T-beams has entered an accelerated phase; the workshop is operating on a two-shift schedule, making every effort to ensure shipyard delivery deadlines are met.

T-profiles serve as core load-bearing components for decks and compartments, with welding work accounting for nearly one-quarter of the total hull fabrication. Zhouxiang’s multi-head gantry welding system can simultaneously process 5 to 9 T-profiles in a single pass, accommodating lengths from 2,500 to 16,000 mm, flange thicknesses of 6–30 mm, and web thicknesses of 8–20 mm. The equipment is equipped with OTC XD600G digital inverter gas-shielded welding machines; it utilizes a single-arc/single-wire process for thinner plates and switches to a dual-arc/dual-wire process for plates exceeding 20 mm in thickness, with adjustable welding speeds ranging from 250 to 1,000 mm/min. Each welding arm is independently fitted with an electronic contact-type sensor tracker, supporting automatic positioning and real-time weld seam tracking.

This batch of orders comes from a major domestic shipbuilding enterprise. On-site testing has verified that welding six T-bars simultaneously takes only 43–45 minutes—more than double the efficiency of traditional single-unit setups. The process significantly reduces the need for grinding and rework, effectively alleviating welder shortages and production capacity bottlenecks.

Zhouxiang is a national-level "Little Giant" enterprise recognized for specialization, refinement, uniqueness, and innovation. With thirty-five years of deep expertise in welding and cutting equipment, the company holds over fifty invention patents. Its equipment utilizes a control system combining PLCs and microcontrollers, features touchscreen operation, and allows welding parameters to be stored and recalled; it is also equipped with an emergency stop button and a manual control station, enabling operator intervention at any time.

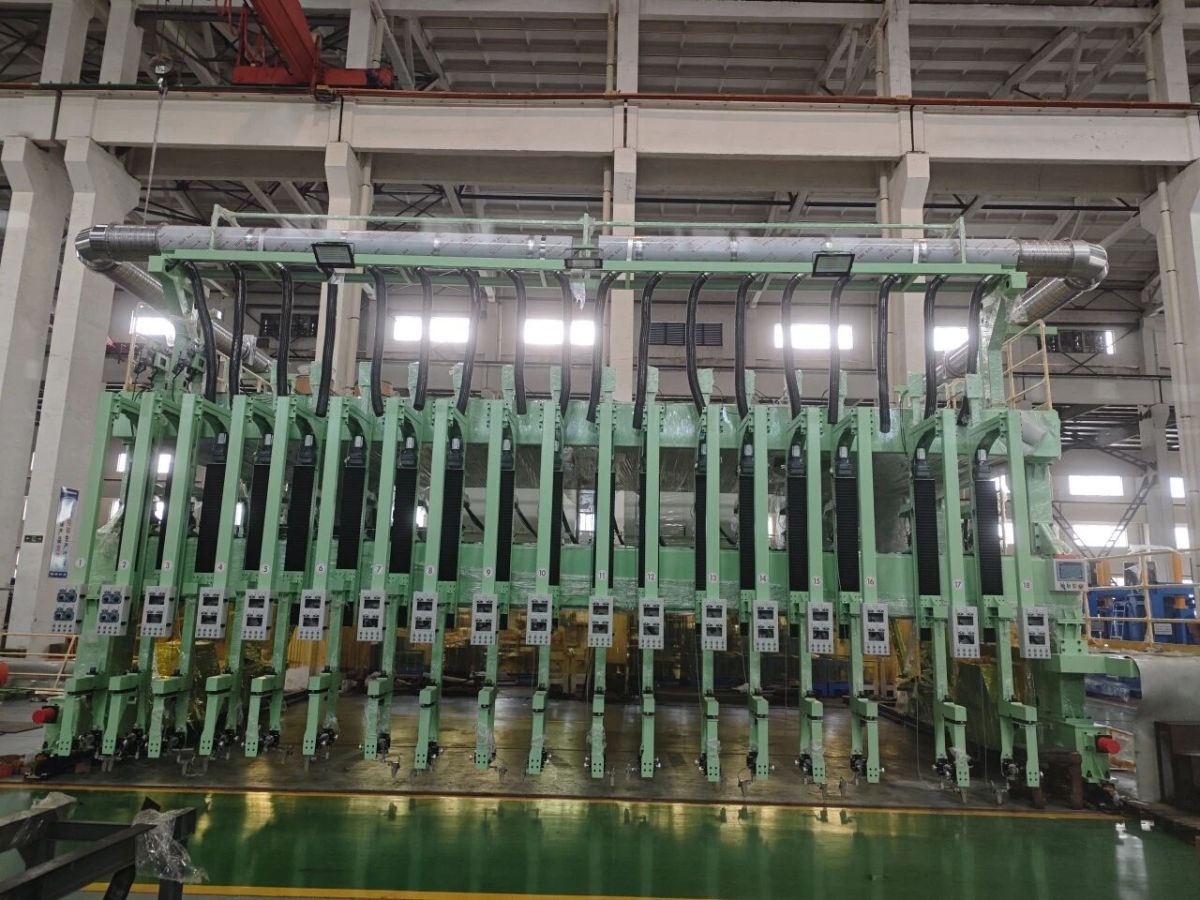

Production across multiple units is currently proceeding steadily, and upon completion, the equipment will be shipped to shipbuilding bases in succession. Zhouxiang aims to empower domestic shipyards to reduce costs and enhance efficiency through high-performance automated welding equipment, thereby accelerating the intelligent upgrading of the shipbuilding industry.
