Height Adjustable Welding Positioner
You are here: Home » Products » Welding Positioner » Height Adjustable Welding Positioner

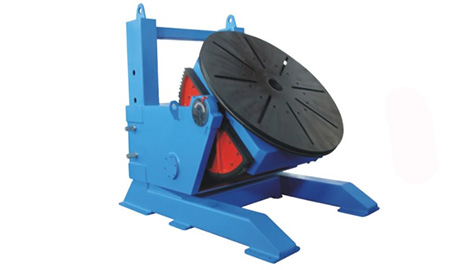

Height Adjustable Welding Positioner

Positioner is widely used for welding and holding and assembling of complex workpiece. It is an excellent assistance device for mechanical industry especially steel structure manufacturing industry such as small chemical vessel manufacturing. SHB series welding positioner is composed of slewing mechanism of working table, overturning mechanism of working table, electrical control assembly and elevating frame. It has beautiful appearance and compact structure.

Quantity:
Product Description


type

Rated load(kg)

Rotating speed(rpm)

Overturning angle(°)

Size of working table(mm)

Motor power

rotating

overturning

SHB-10

1000

0.05-0.5

0-120°

1200

1.1

1.5

SHB-30

3000

0.05-0.5

0-120°

1400

1.5

1.5

SHB-50

5000

0.05-0.5

0-120°

1500

2.2

3

1000Kg Lift Horizontal Revolving Welding Positioner

WELDING POSITIONER

   Being forged, gear has perfect durability and long service life.

1000Kg Lift Horizontal Revolving Welding Positioner

The welding positioner includes various types such as sidelurch style, head & end single rotary type, head&end double rotary style and etc. With gyration and upturning of working table, the welding and fitting can be located at the right position. If connected with other welding devices, it can be turned into a half-automatic or full automatic welding machine. The gyration of working table can use electromagnetic speed variation or frequency control. Because of eccentricity and gravity, it is better to choose a bigger type for long workp -ieces or those with too much gravity center deviation.The shape and weight of workpieces, process and working method are provided, our company shall supply a prom -pt scheme your reference.

1000Kg Lift Horizontal Revolving Welding Positioner

Rotary function adopts frequency control of motor speed, unlimited rotary.

GEAR DRIVE
Being forged, gear has perfect durability and long service life.

Countertops have concentric calibration, with T slot, convenient clamping workpiece

Large flipped angle, from 0 to 120 degrees long service life.

1000Kg Lift Horizontal Revolving Welding Positioner

 Electric cabinet and emergency button

 It can be equipped with manual operation box , or wireless remote control box according to users’ requirement, which is convenient for operation.

 CUSTOM SERVICE
According to the rated capacity of different different specifications can be customized.The appearance of color can be customized.

1000Kg Lift Horizontal Revolving Welding Positioner
