5-500T Self Aligning Welding Rotator

Turning rolls including one power and one idle, after load on the work piece, the roll will auto suit the work piece, no need to adjust the center distance. This welding rotator mainly consist of powered rotator, idle rotator, driving reducer system, control system etc. It is mainly used for longitudinal and circular seam welding of cylinders together with the submerged arc welder.
Availability:
Quantity:
Inquire Add to Basket

Product Description

可调滚轮架

Product Parameter

photobank8

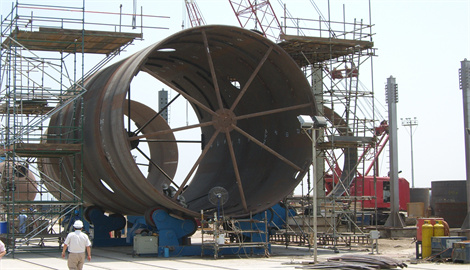

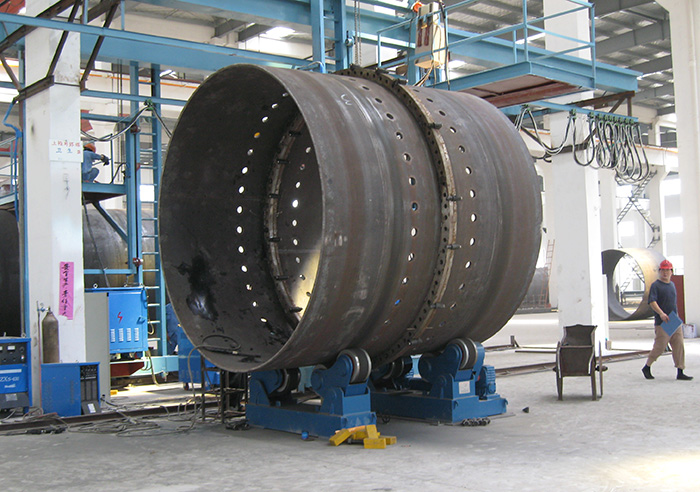

The turning roll is designed to aid the welding of tanks. By using independent drive and idler units, tanks of varying lengths can be placed on the turning rolls supported on the turning rolls wheels. The power welding rotator and the passive welding rotator can be moved on the track, and the distance between them can be adjusted to weld cylinders of different lengths. The wheels of self aligned welding rotator can be opened on the base frame to accommodate different vessel diameters. Our heavy duty, built to last self aligned welding rotators are designed and manufactured to tolerate the hardest, hard-wearing and unrelenting workload environments.

Model
Load & Rotation Capacity
(IBS)
Tanks Diameter Range (in)
Rotation Speed (mm/min)
Driven Motor Power (HP)
Frame Center
Distance
Wheels
Diameter & Width
Roll Dimensions (mm)
C (mm)
ΦW * Wr (mm)
Lp * Wp * H
Li * Wi * H
GLHZ-5
11,000
9 27/32--90 35/64
100-1000 Speed adjusted by VFD
1.0
940
250*140
1560*695*692
1240*380*692
GLHZ-10
22,000
12 19/32--110 15/64
2.0
1100
300*150
1800*705*805
1440*400*805
GLHZ-20
44,000
19 11/16--137 51/64
3.0
1400
350*180
2180*910*895
1780*480*895
GLHZ-40
88,000
23 5/8--165 23/64
4.0
1600
400*200
2448*1000*1018
2040*530*1018
GLHZ-60
132,000
29 1/2--188 31/32
5.4
1800
450*220
2770*1100*1095
2340*585*1095
GLHZ-80
176,000
33 15/32--196 27/32
5.4
2000
500*240
2975*1165*1198
2540*620*1198
GLHZ-100
220,000
39 3/8--216 17/32
7.4
2200
500*280
3380*1405*1320
2800*730*1320
GLHZ-150
330,000
43 5/16--236 7/32
10.0
2500
600*280
3870*1600*1550
3240*800*1550
GLHZ-250
550,000
47 1/4 --275 19/32
15.0
2800
700*300
4468*1620*1785
3620*860*1785
GLHZ-500
1,100,000
59 1/16--314 31/32
20.0
3500
850*350
5562*1784*2062
4420*950*2062

Product Advantages


photobank3

可调2

photobank4

photobank7

photobank1

photobank5
