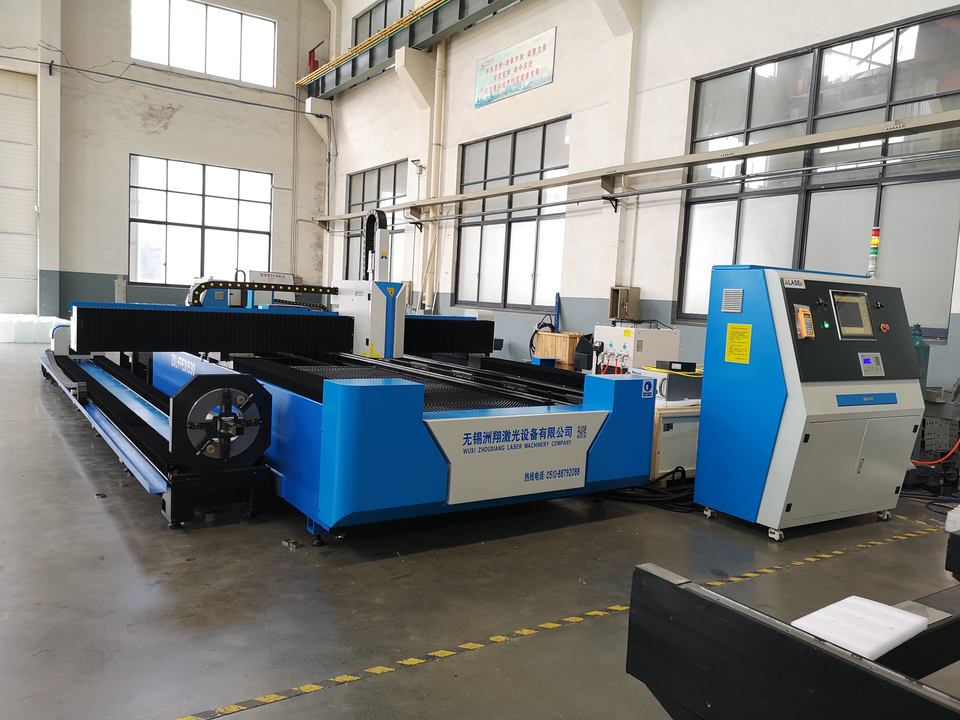

Fiber laser plate and pipe intergal cutting machine adpot the most advanced IPG fiber laser in the world,the power is from 1000W to 15000W, combine multi-function,high precision and high performance together. This machine can process and cut the materials as follows:carbon steel,silicon steel,stainless steel,galvanized sheet,pickling board and other metal materials,square pipe,round pipe,oval pipe and other special shaped pipe and plates.It can be used in all kinds of manufacturing and processing industries:metal plate processing, aviation, electronic, electrical equipment, metro spare parts,automobile,machinery,precise spare parts, elevator,household appliances,craft gift,tools processing,decoration,advertisement,metal processing and so on.
Items | Parameter | |
Fiber Laser Power | 2KW-40KW | |
Stroke | X axis | 1500/2000/2500mm |
Y axis | 6050/8050mm | |
Z axis | 250mm | |
Moving Speed | X axis | 60m/min |
Y axis | 60m/min | |
Z axis | 20m/min | |
Accuracy | X/Y axis position accuracy | ±0.03mm |
X/Y axis repeat positioning accuracy | ±0.02mm | |
The exact process range can be designed and manufactured according to customer’s requirements. |
Laser power | Fiber laser cutting thickness | |||
carbon steel | stainless steel | aluminum alloy | non- ferrous metal | |
1000W | 10mm | 6mm | 4mm | 3mm |
1500W | 12mm | 8mm | 6mm | 5mm |
2000W | 16mm | 9mm | 8mm | 6mm |
3000W | 20mm | 12mm | 9mm | 7mm |
4000W | 23mm | 16mm | 10mm | 8mm |
6000W | 25mm | 19mm | 15mm | 12mm |
8000W | 28mm | 22mm | 16mm | 14mm |
