【Zhou Xiang Welding And Cutting】How The Steel Structure Is Processed

CNC Plasma Flame Cutting Machine

CNC flame/plasma cutting utilizes a digital motion control system, by writing a processing program in the system or transferring processing files or graphics, combined with a stepper or servo motor driver, which drives the stepper or servo motor to control the processing axis of the machine tool to achieve motion, it can realize the flame/plasma cutting process, cutting the desired metal shape by combustible gas or plasma arc.

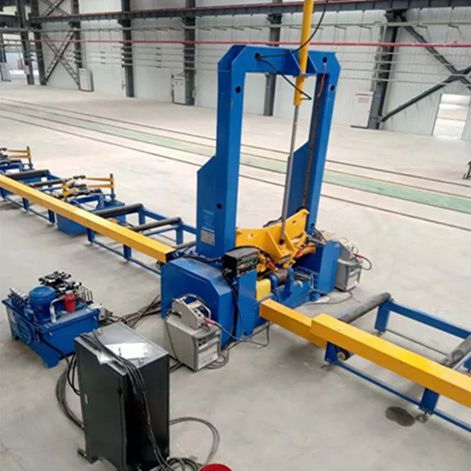

H-beam Assembly Machine


The single group erection machine is composed of main machine, trolley box, input rollerway, output rollerway, electric control box, operation box, hydraulic station and other departments. The process of wing plate, web plate, clamping alignment, positioning and automatic spot welding of this erector adopts Japanese Mitsubishi programmable controller and AC inverter, thus realizing automatic control more than double the efficiency of general products. The work is stable and reliable, and the welding gun is equipped with a tracking arc guide device, which can ensure the quality of spot welding.

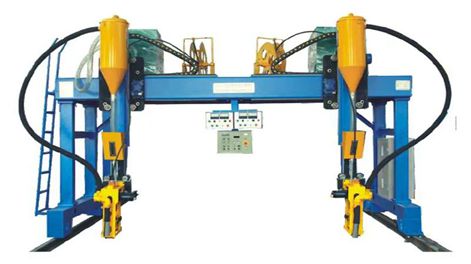

H-beam Gantry Type Submerged Arc Welding Machine


The workpiece is placed on the workpiece carrier, tilted 45 degrees so that the weld is ship-shaped welding position, the welding arm equipped with the submerged arc welding head can move horizontally and up and down on the gantry beam, so that the welding nozzle on the head is aligned with the weld, and the front of the welding arm is equipped with a mechanical automatic tracking device for the weld, and then the gantry walks in a straight line on the steel track for automatic welding. The machine is equipped with automatic flux laying, recovery and disposal device.

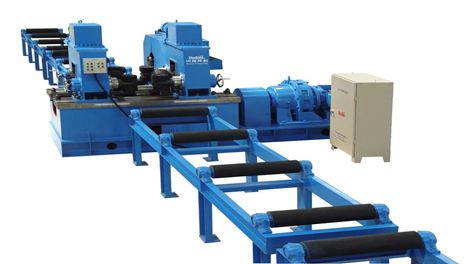

H-beam Straightening Machine


H-beam straightening machine is used for straightening the deformed surface of welded H-beam flange plate in the welding process. It is mainly composed of base, upper frame, upper straightening wheel mechanism, web guiding mechanism, upper frame moving device, main transmission machine, conveying roller conveyor and electric control system structure, which has the advantages of compact structure, convenient operation and easy maintenance.

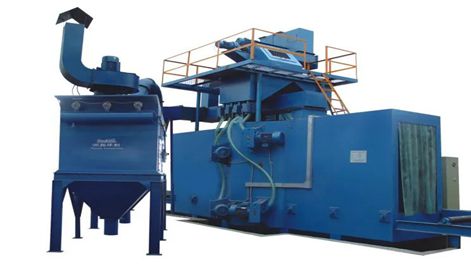

H-beam Shot Blasting Machine


H-beam series shot blast cleaning machine is a kind of automatic shot blast cleaning equipment. It can be used for the surface cleaning and strengthening of metal structural parts, H-beams, steel plates and other profiles. Through the shot blasting cleaning, not only can remove the rust on the surface of the workpiece, clean off the weld slag on the structural parts, but also can eliminate the welding stress of the workpiece, improve the fatigue strength of the workpiece, increase the adhesion of the paint film when the workpiece is painted, and finally achieve the purpose of improving the entire surface and internal quality.

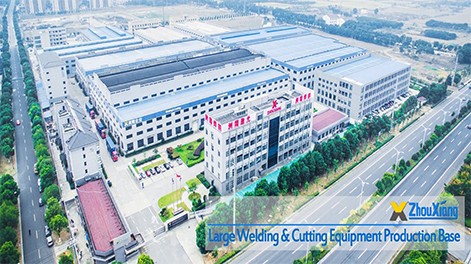

Zhouxiang Enterprise

Specializing in the production of H-beam light and heavy steel production line, box beam production line, horizontal production line, double-splicing welding and straightening automatic line, all kinds of automated customized assembly line; including CNC flame plasma cutting machine, fiber laser flat cutting machine, laser pipe cutting machine, tube and plate integrated machine, hand-held laser welding machine, H-beam assembling machine, gantry submerged arc welding machine, H-beam straightening machine, shot blasting machine, H-Beam assembly welding and straightening integrated machine, welding special machine, auxiliary machine, rolling machine, profile bending machine, various welding machines, etc,Made by Zhouxiang, professional quality, high precision, high speed.

Leading technology, stable quality, products sell well at home and abroad.
