Detailed introduction

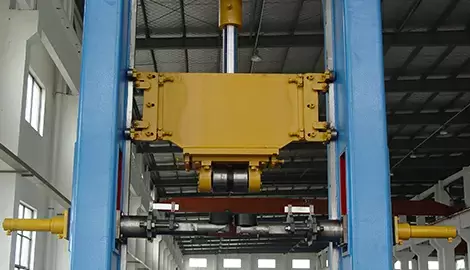

The material of pressing wheel, guiding wheel and main transmission wheel is 40Cr, with high frequency quenching process on the surface, has the advantages of good abrasion resistance and long service time. The main transmission wheel uses integral forging process with good pressure resistance and high abrasion resistance.

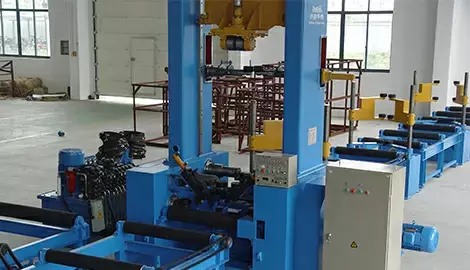

The automatic centering of flange and web plateadopts hydraulic motor and gear, with high centering precision and good retentivity. All of the operation are centralized on the electric control button panel, with easy and convenient operation and precise positioning.

The main transmission part adopts cycloid pinwheel and Taiwan TAIAN brand inverter, the assembly speed can be adjusted between 0.5—6 M/min.

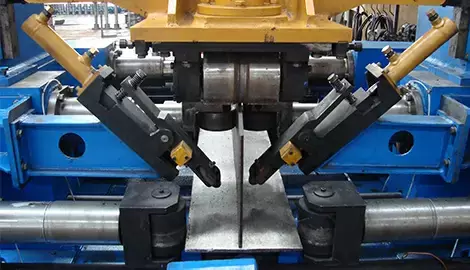

It adopts synchronous clamping system to realize flange and web primary centering, which can fundamentally slow down and avoid the phenomenon of H beam tail wagging during assembly.

This machine adopts centralized lubrication system, it can ensure that the wide distributed lubrication points can be lubricated well, and realize the purpose of good lubrication, reducing abrasion and prolong service life of the equipment.
