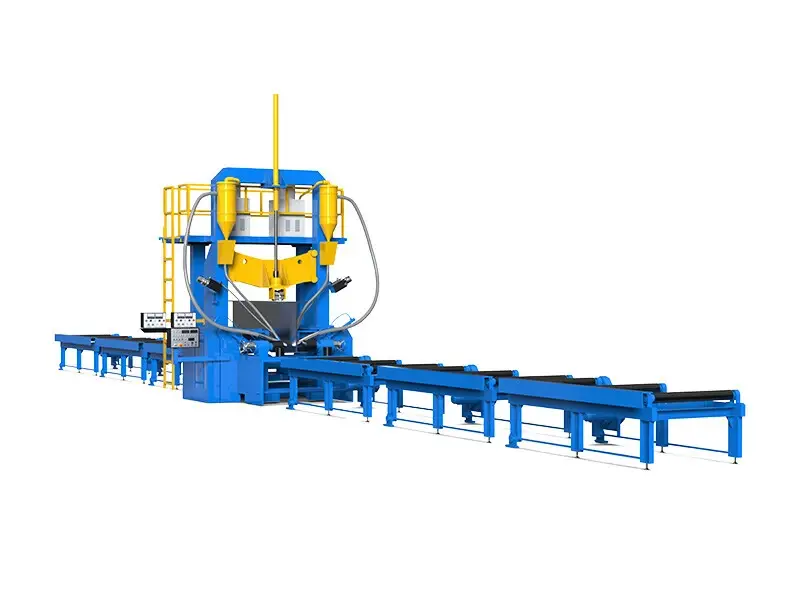

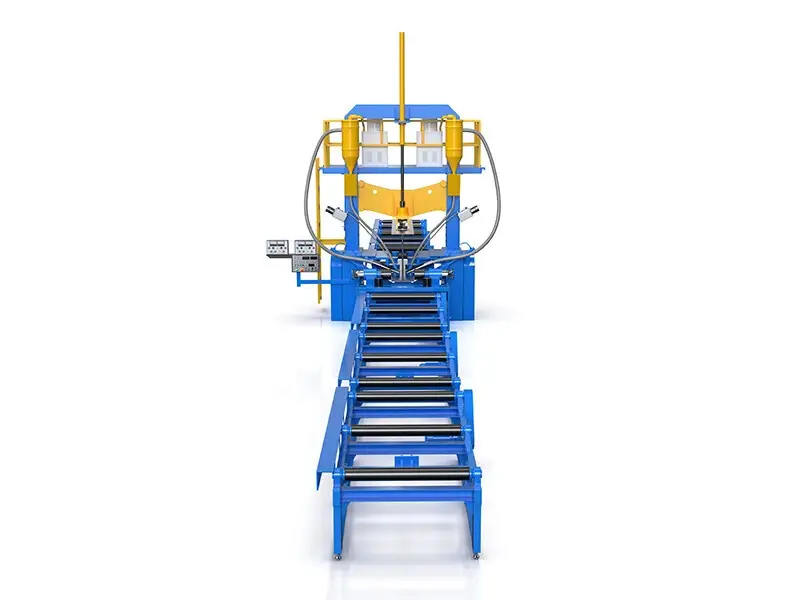

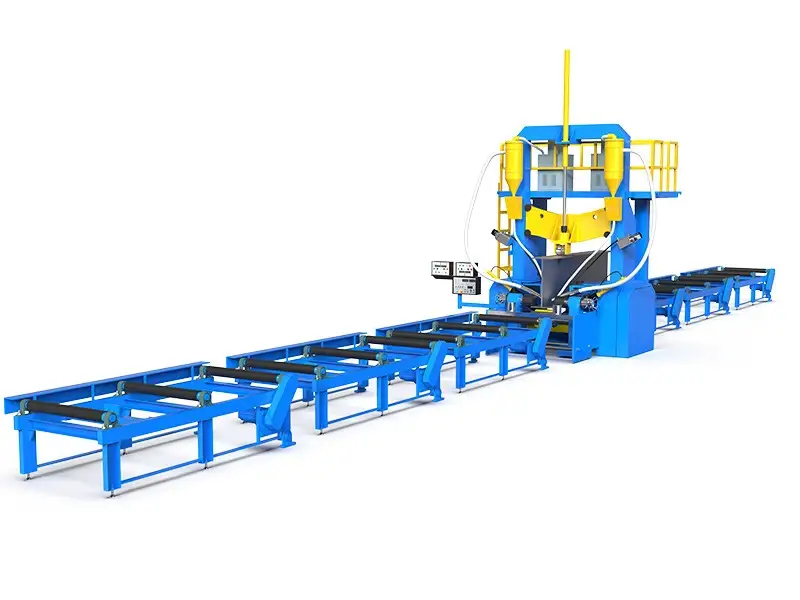

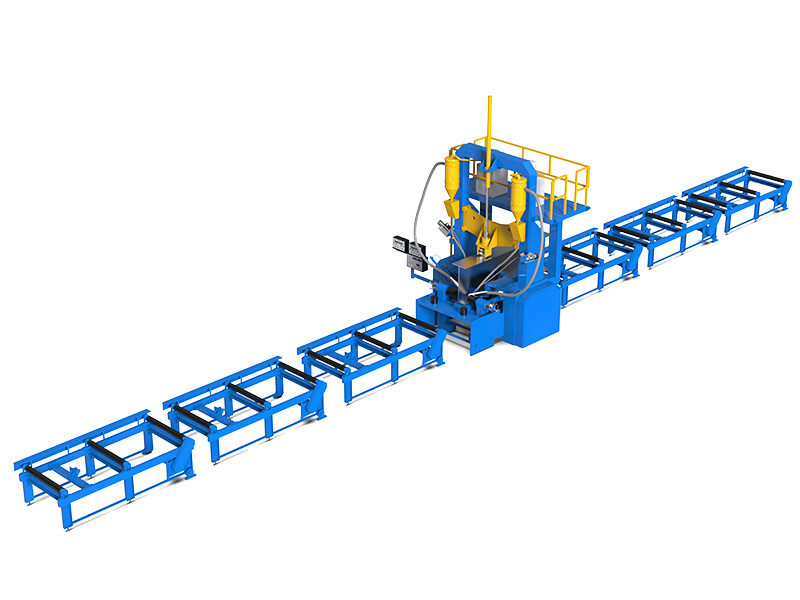

H Beam Welding Line

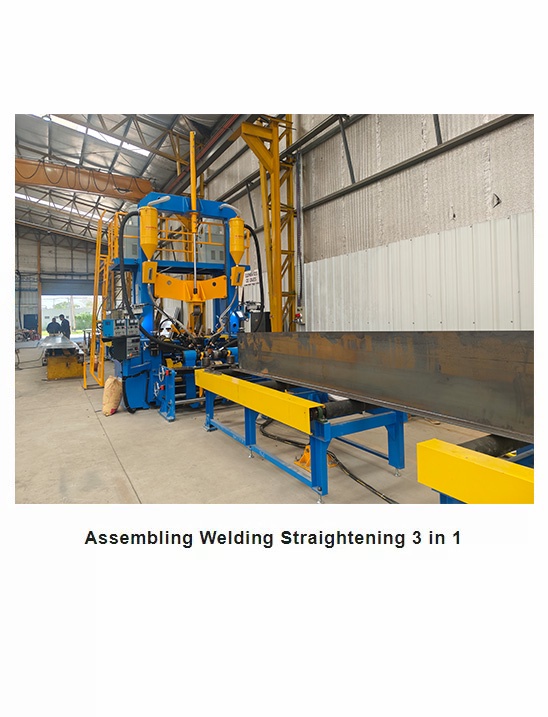

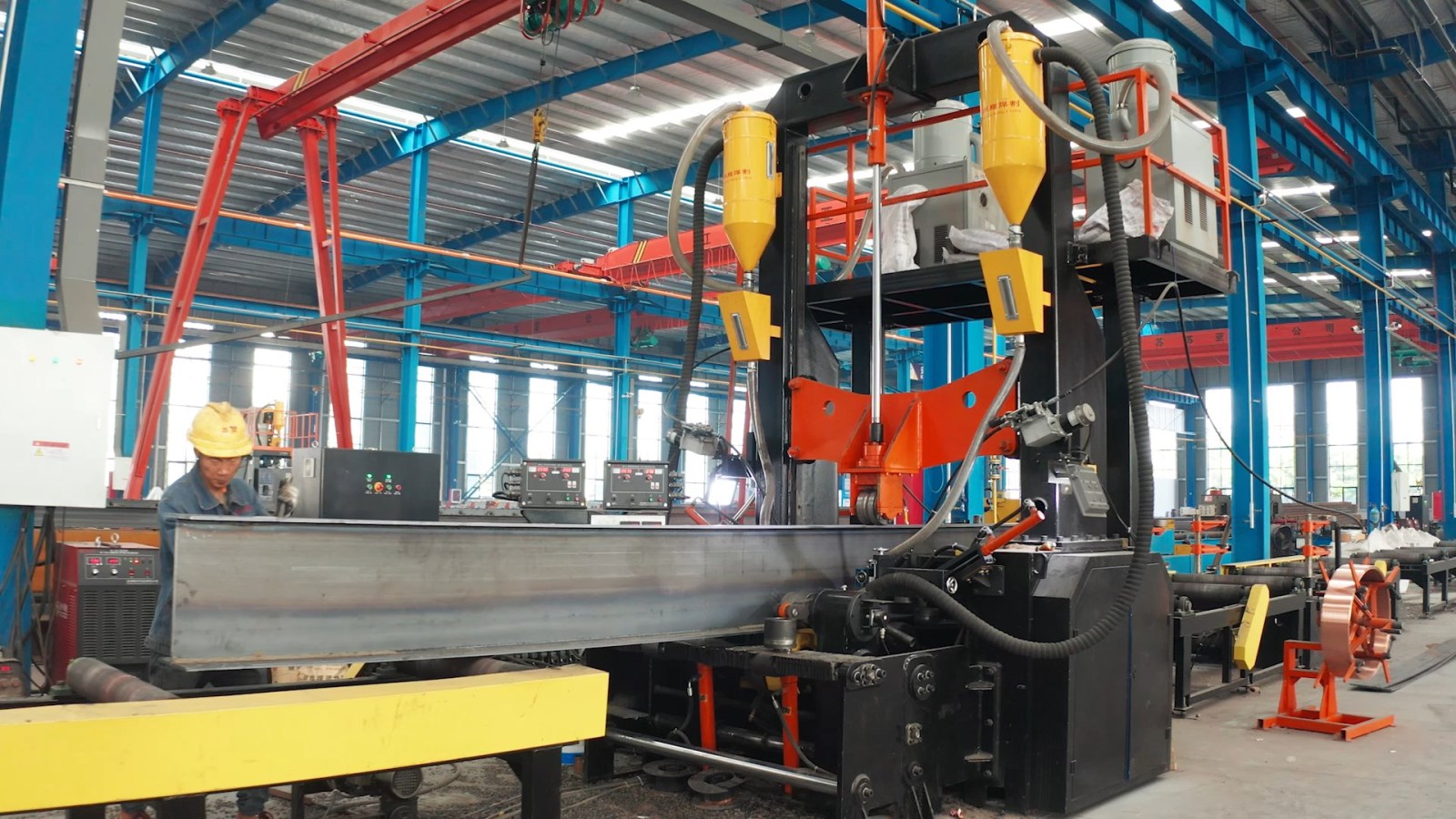

H-beam vertical assembling, welding and straightening multi-function integrated machine is a high-efficiency equipment for the production of welded H-beams. It can simultaneously complete H-beam assembly, submerged arc welding, and flange plate welding deformation on the same machine.The machine occupies a small area which can save installation space. It saves the hoisting and turning time between each process with single machine,then the efficiency is greatly improved, and the cost is reduced. It is a high-tech, economical and practical H-beam production equipment.
Contact Us

Product Display

Machine Parameters

Length

26000mm

Width

2400mm

Height

5000mm

Assembling welding speed

0.35-1.9m/min

Main Machine Power

4KW

Pump Station Power

5.5KW

H-beam Size

Positioner

Parameter

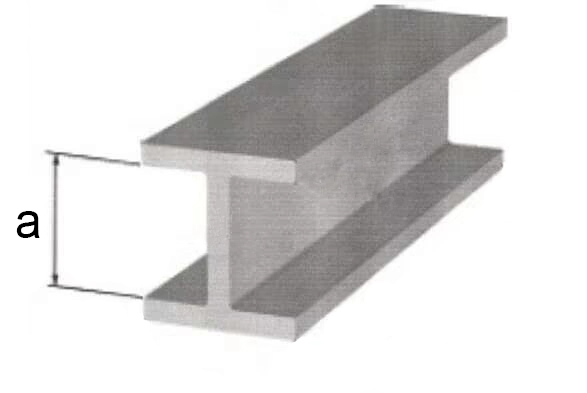

legend

Web Height

160-1500mm

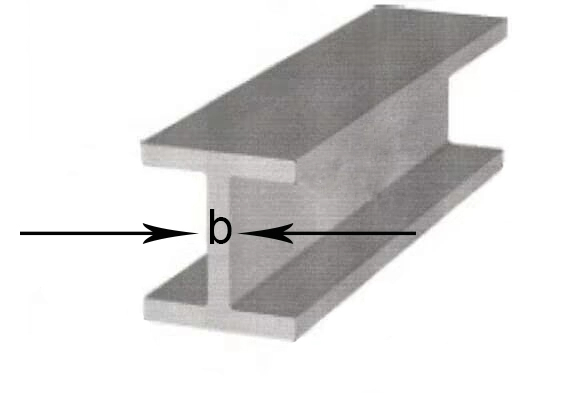

Web Thickness

6-16mm

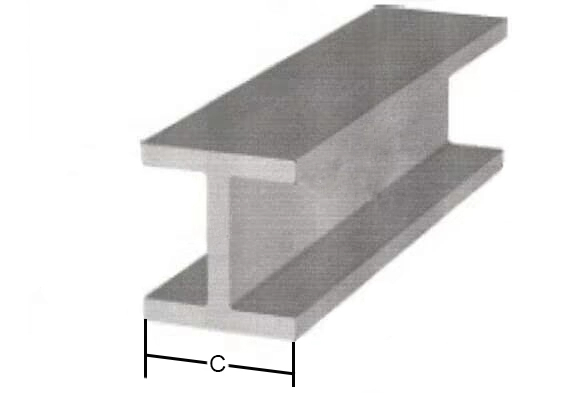

Flange Width

150-800mm

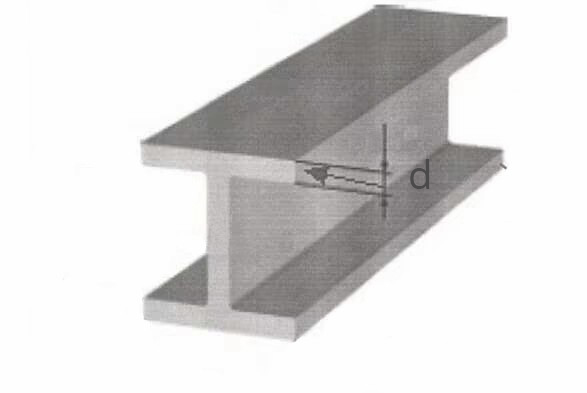

Flange Thickness

6-20mm


H Beam Length

4000-15000mm


Advantages

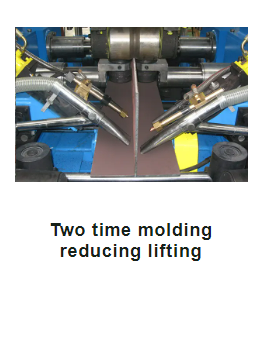

High Efficiency
High Efficiency

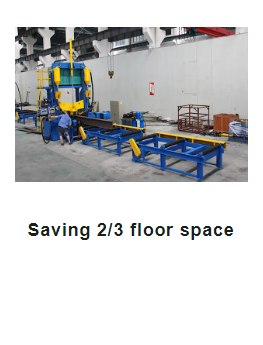

Small Footprint
Small Footprint

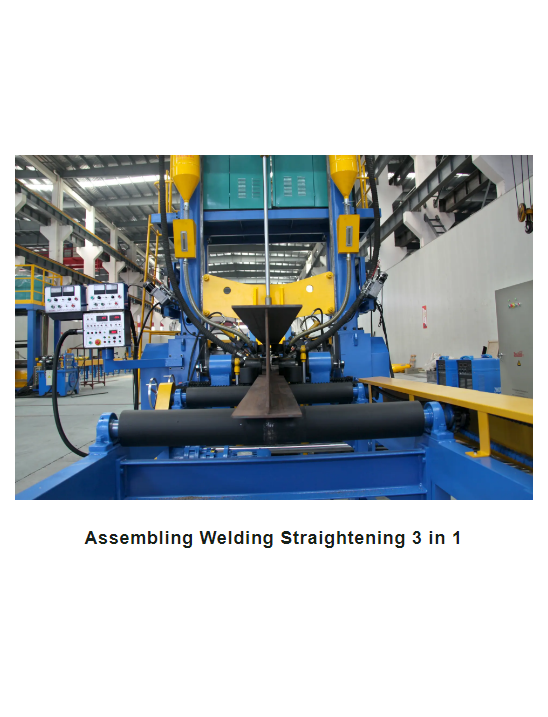

Low Investment
Low Investment

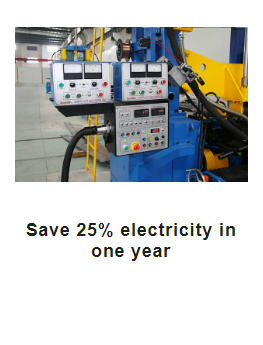

Saving Energy
Saving Energy

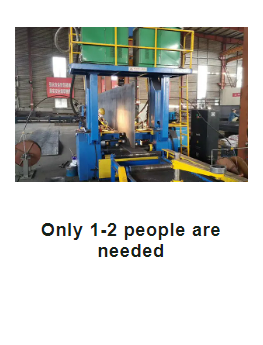

Less Labor
Less Labor

Introduction

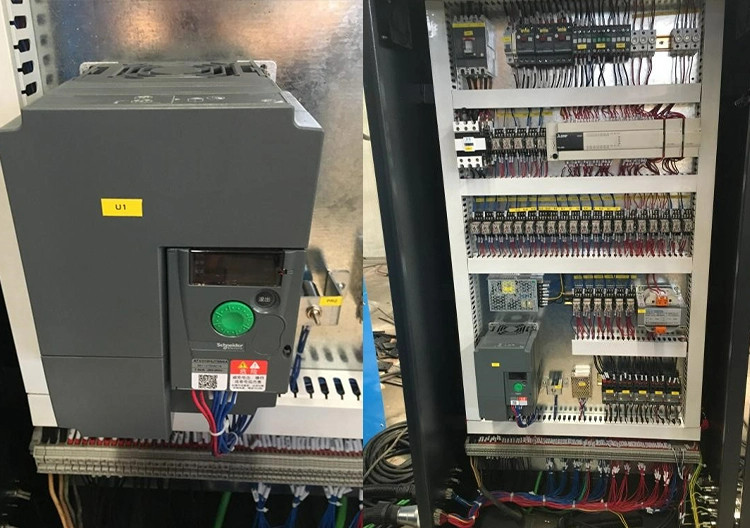

Schneider inverter with high quality from France

The French high-quality Schneider inverter can effectively realize the automatic assembly, welding and correction of plates of different thicknesses by changing the working speed.

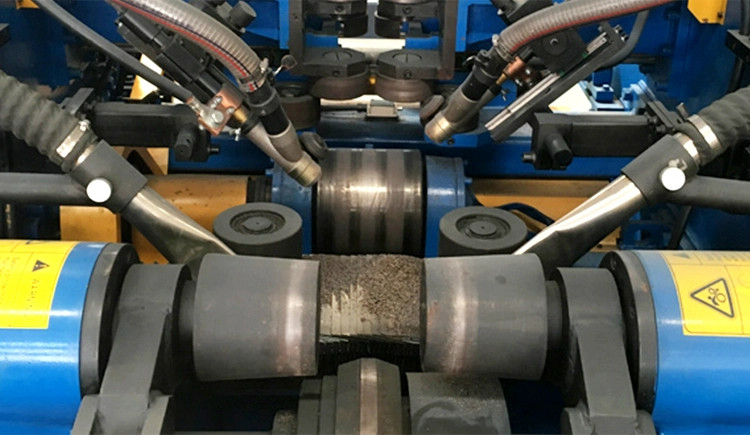

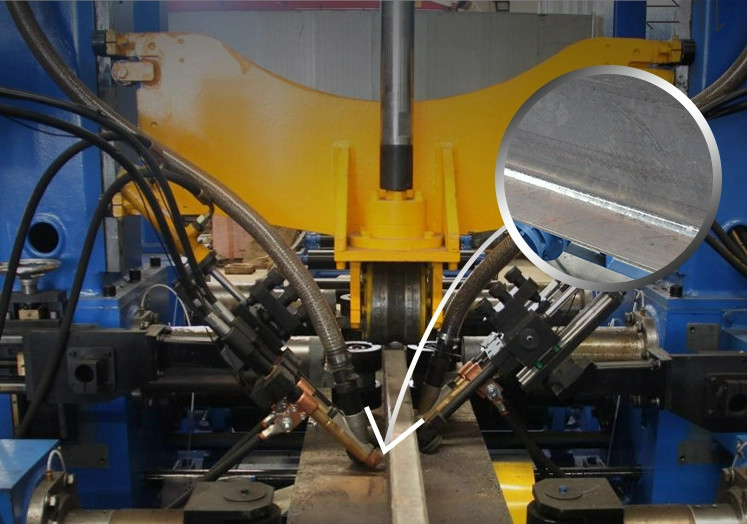

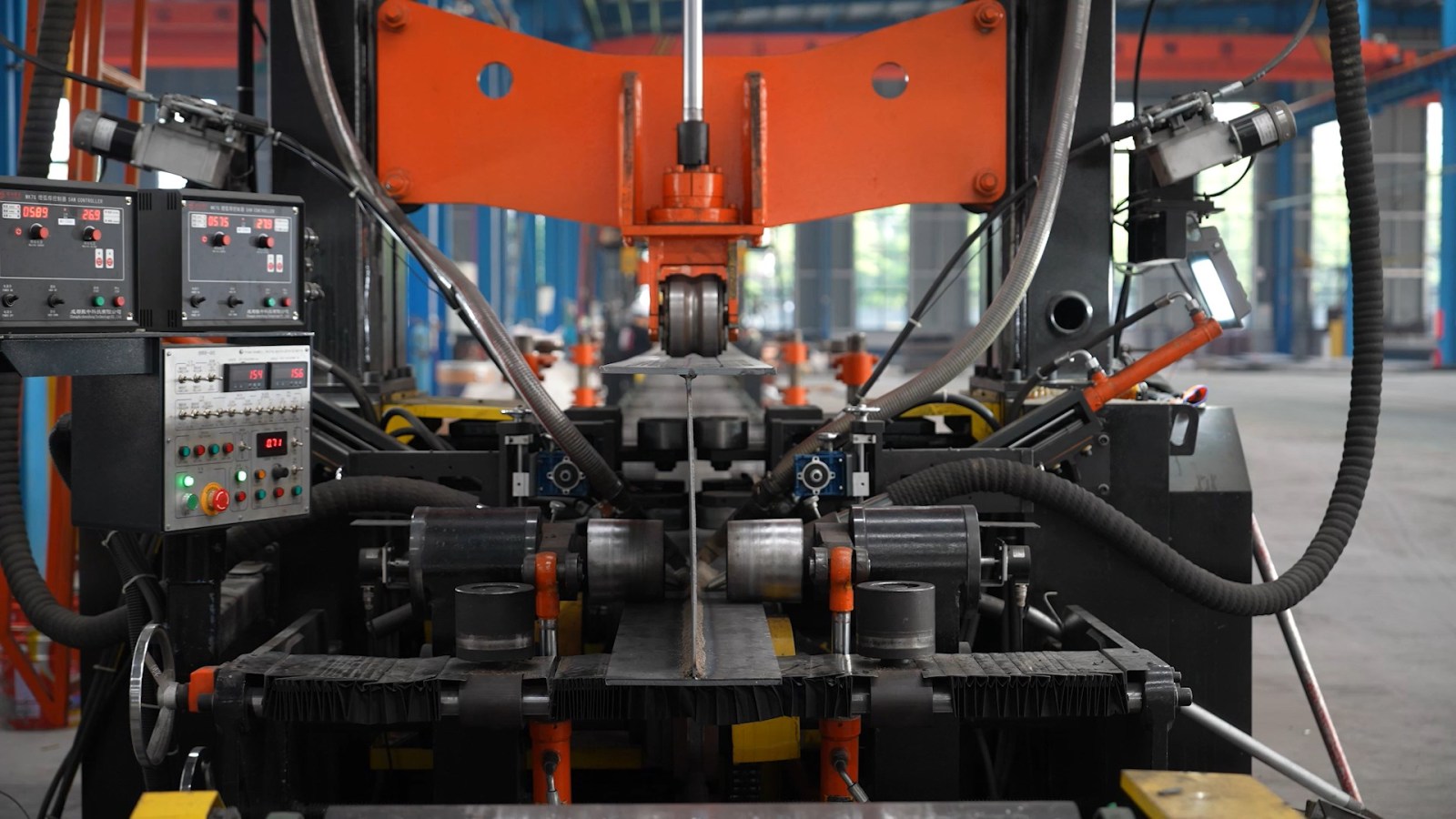

Adjust horizontal and vertical arbitrarily

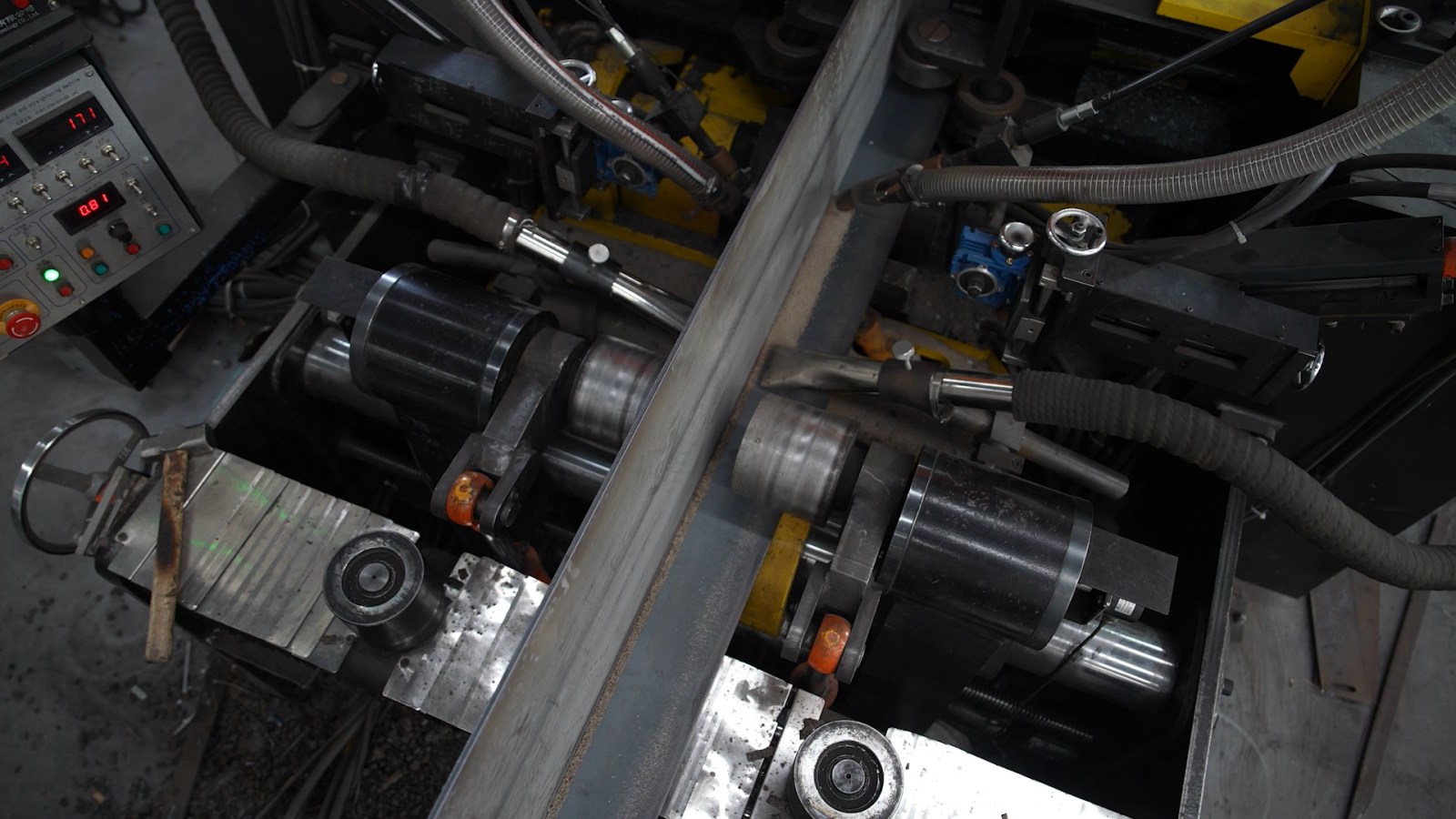

Firm welding torch fix mechanism is set up separately, it not only can adjust height and horizontal moving position, also can adjust the angle of welding torch on two direction, it guarantees the nice seam form


Various welding forms

The welding method can be based on the customer's sheet thickness and actual requirements

Related Products

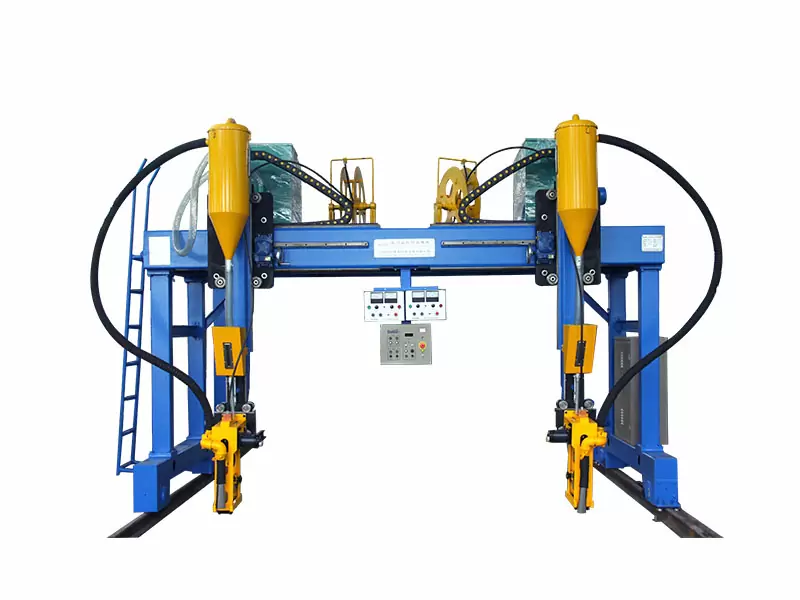

This automatic welding machine is mainly used for submerged arc welding of assembled H beam.
This automatic welding machine is mainly used for submerged arc welding of assembled H beam.
H-beam Welding Machine
Read More >

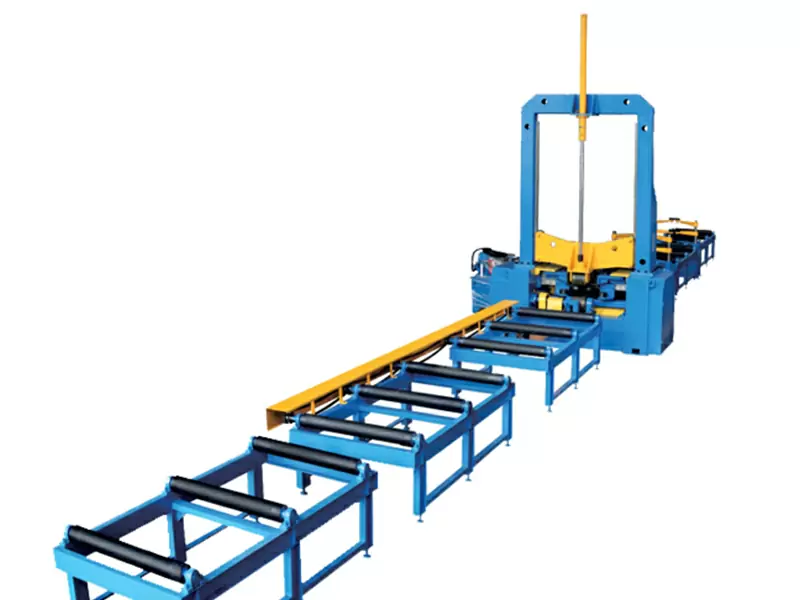

The main components of this assembling machineare welded structure parts with 'large strength andlight weight. it is mainly used for producing light weight H beam.
