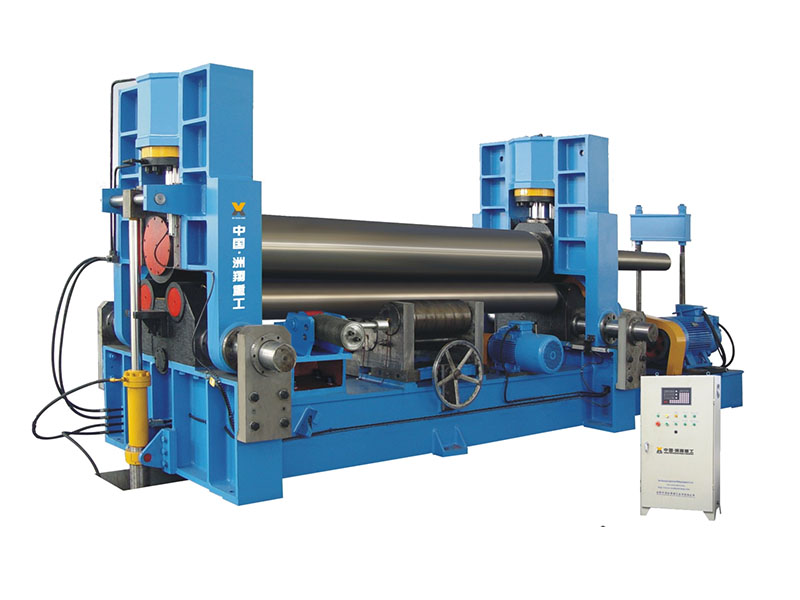

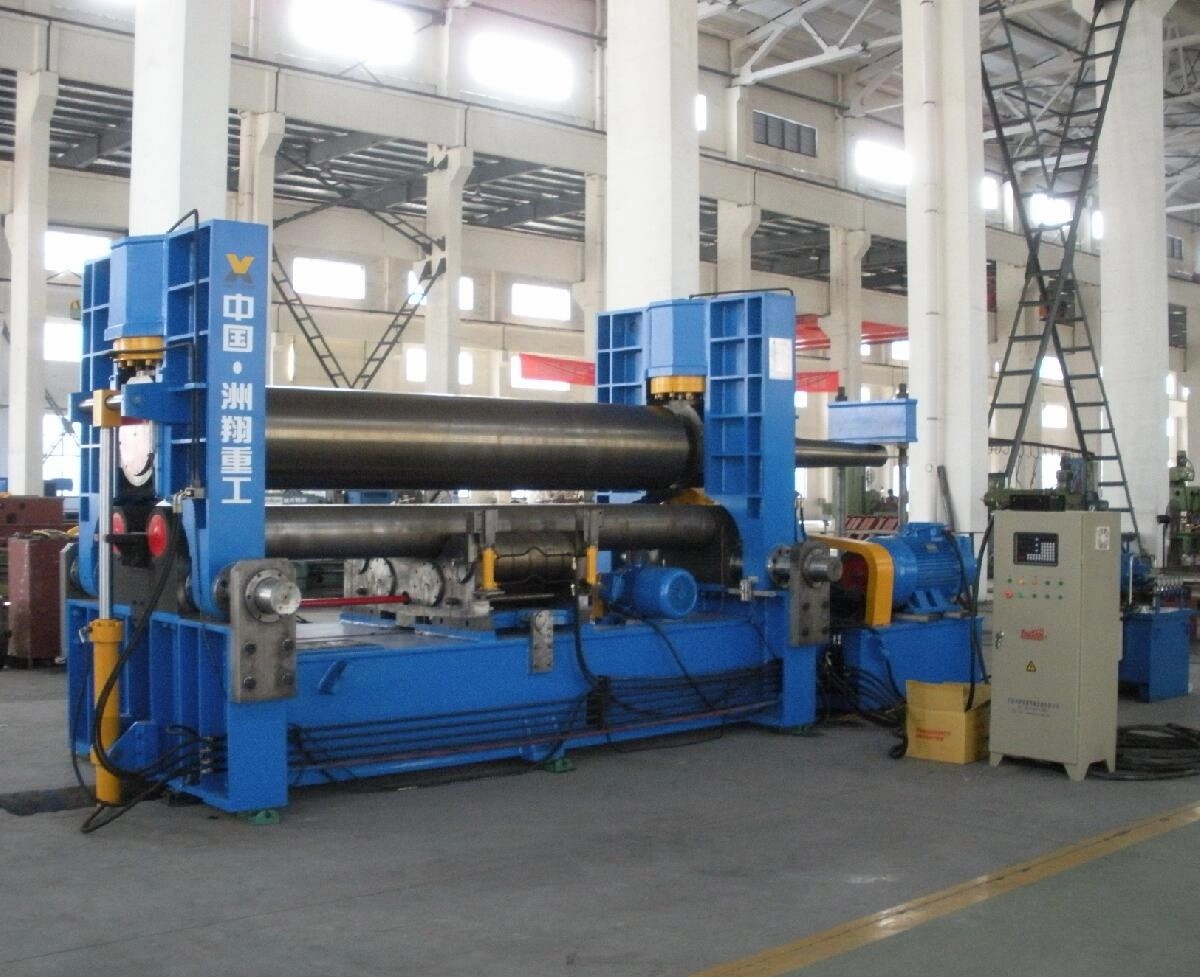

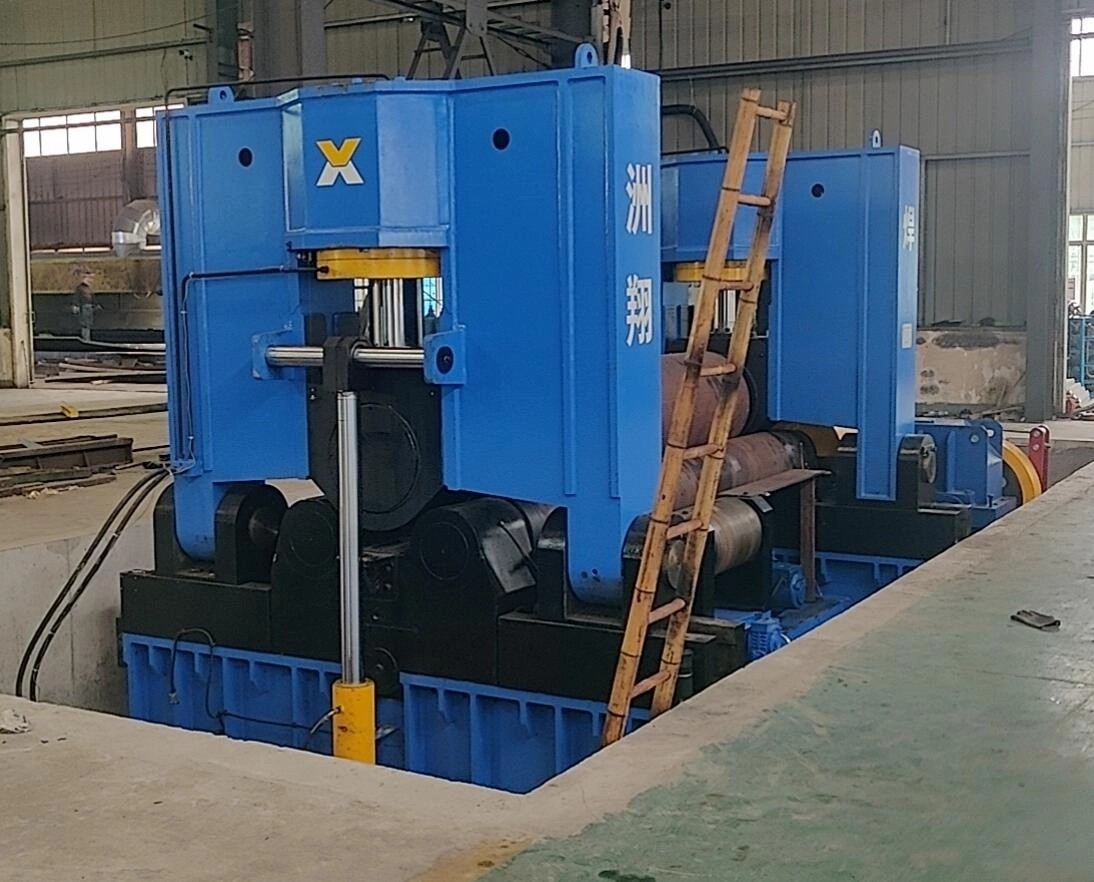

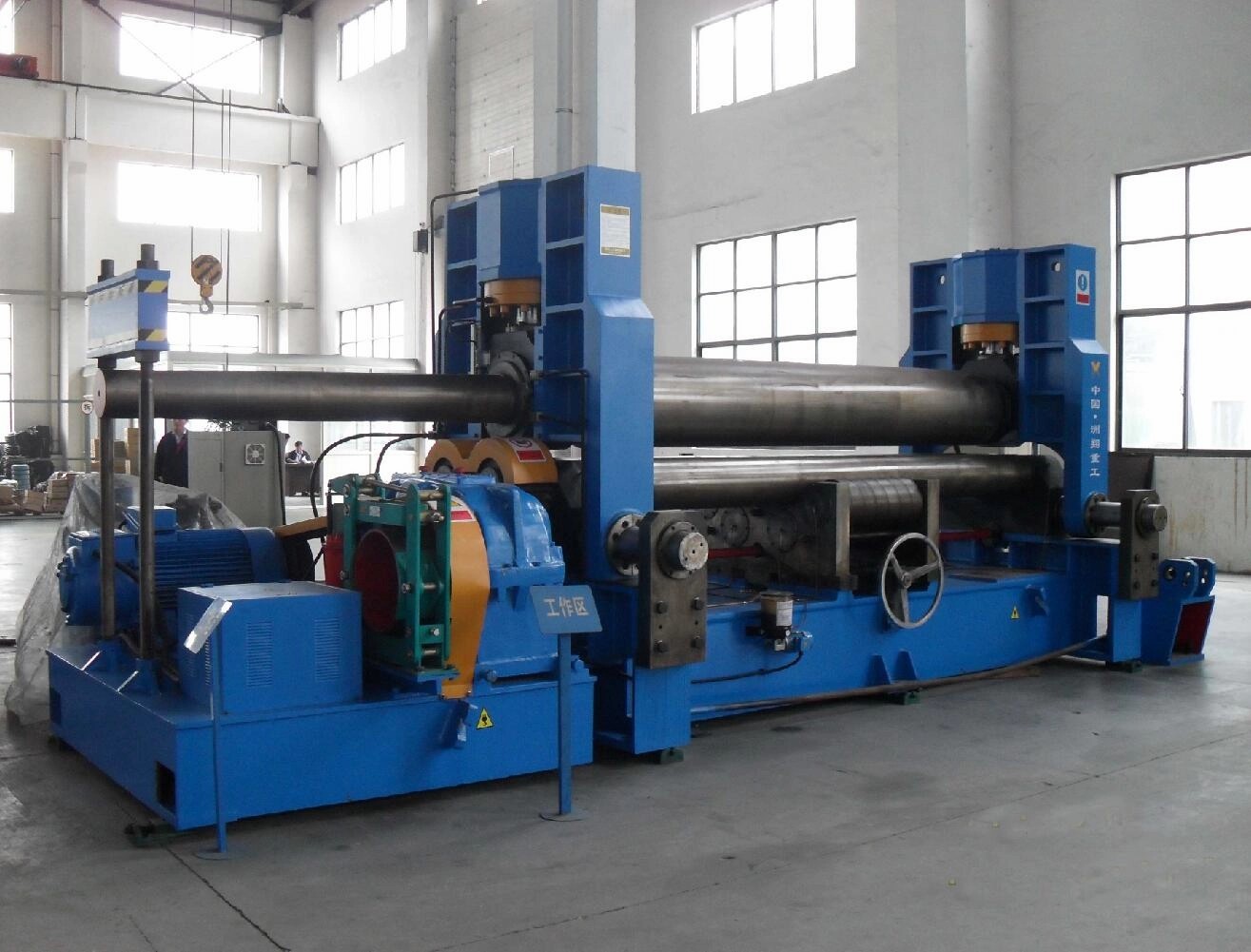

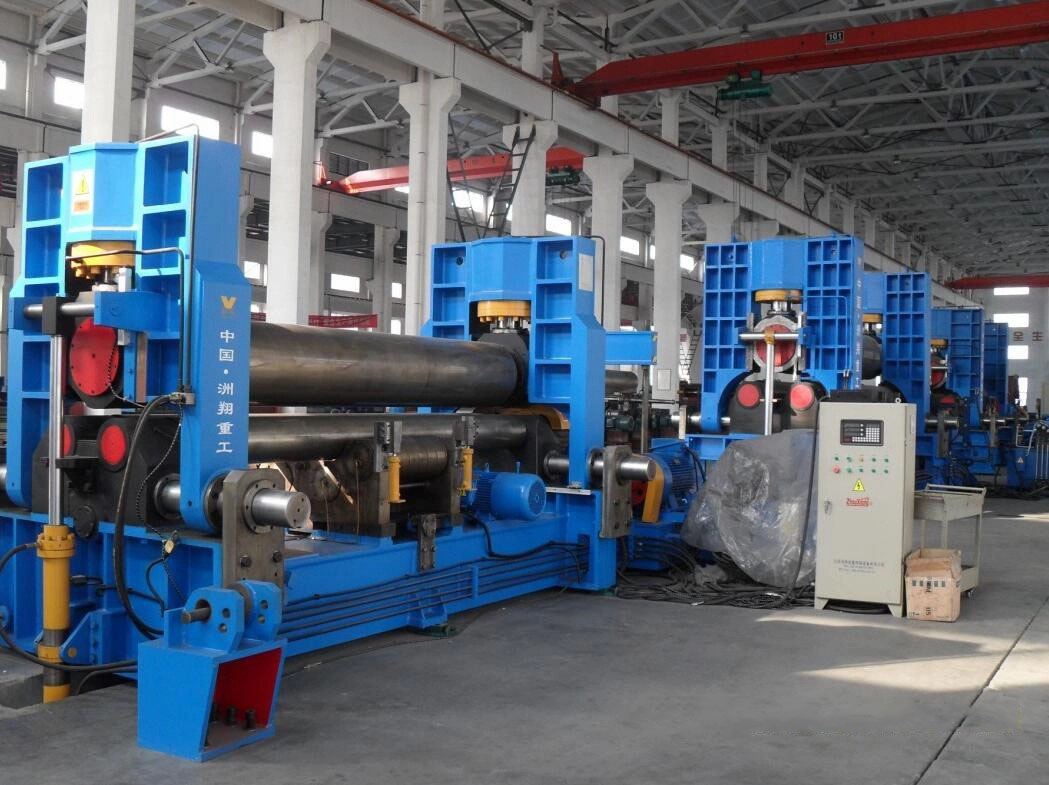

Multi-function 3-Roller Rolling Machine

By setting the length of the straight edge freely, the upper roller presses on the steel plate directly to achieve pre-bending. The rolling technical parameters are numerical controlled, which makes the operation easier and enhances the production efficiency largely.

Product Description

Technical Parameter

Model	Max thickness (mm)	Max width (mm)	Yield limit (MPa)	Min bending Dia. (mm)	Rolling speed (m/min)	Main motor power (Kw)
W11SNC-15×2000	15	2000	245	600	4	7.5
W11SNC-20×2000	20	2000	245	800	4	15
W11SNC-20×2500	20	2500	245	800	4	15
W11SNC-20×3000	20	3000	245	800	4	22
W11SNC-25×2500	25	2500	245	900	4	22
W11SNC-25×4000	25	4000	245	1400	4	30
W11SNC-30×2500	30	2500	245	1100	4	30
W11SNC-30×3000	30	3000	245	1200	4	37
W11SNC-30×4000	30	4000	245	1400	4	45
W11SNC-40×2500	40	2500	245	1400	4	55
W11SHNC-40×3000	40	3000	245	1600	4	55
Above are our standard model, it can be designed and manufactured according to customer’s request.

Technical Features

1. Upper and lower driving, it can finish the end prebending and rolling of metal plate without U-turn.

2. The upper roller is drum shaped roller, there’s adjustable roller supporting device under the lower roller ,which an ensure the accuracy of products.

3. The pressing oil cylinder is positioned on the top place without rod pressing down, which can save energy consumption

4. The material of upper and lower rollers is 42 CrMo, the rollers adopt solid forging with good comprehensive mechanical performance, good core tenacity and high surface hardness, it is suitable for heavy load work with long service life.

5. This machine has an independent operating table to make operation convenient for workers and a safe connecting device, to ensure safety.

6. Economical and applicable, cost-effective, suitable for medium and thick plate rolling system.
