The Shipbuilding T-Bar Production Line is an automated or semi-automated production line specifically designed for manufacturing T-bars (T-sections), one of the most critical structural components used in ship hull construction. Formed by welding a flange plate and a web plate together into a "T" shape, T-bars are widely used in ship sides, decks, bulkheads, and other load-bearing structures.

Traditional manual or semi-manual fabrication methods often suffer from low productivity, inconsistent quality, and high labor intensity. By integrating advanced equipment and intelligent manufacturing technologies, modern T-bar production lines enable high-efficiency, high-precision, and automated production, significantly improving welding quality, dimensional accuracy, and overall manufacturing efficiency while reducing labor costs.

Main Components and Production Process

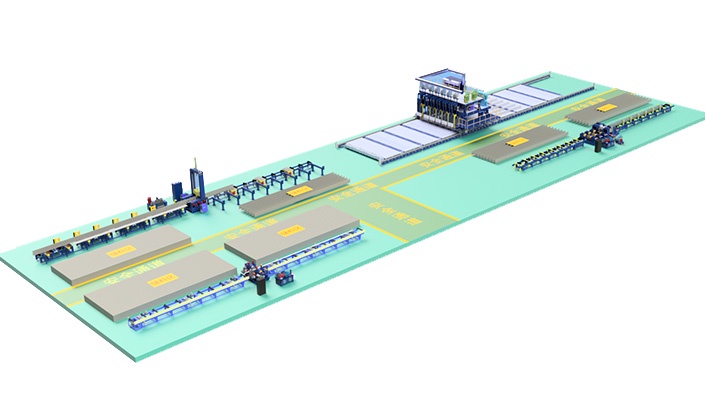

A modern Shipbuilding T-Bar Production Line typically consists of the following key stages, enabling a continuous manufacturing process from raw materials to finished products.

1. Plate Cutting

The flange plates and web plates are cut to the required dimensions using CNC flame/plasma cutting machines or high-power fiber laser cutting machines. The processed plates are then transferred and loaded onto the production line for subsequent operations.

2. Edge Beveling and Grinding

According to welding requirements, the edges of the flange plates are beveled (grooved) and ground to prepare them for high-quality welding with other ship structural sections. This process improves weld penetration and ensures stronger, more reliable joints.

3. Assembly and Positioning

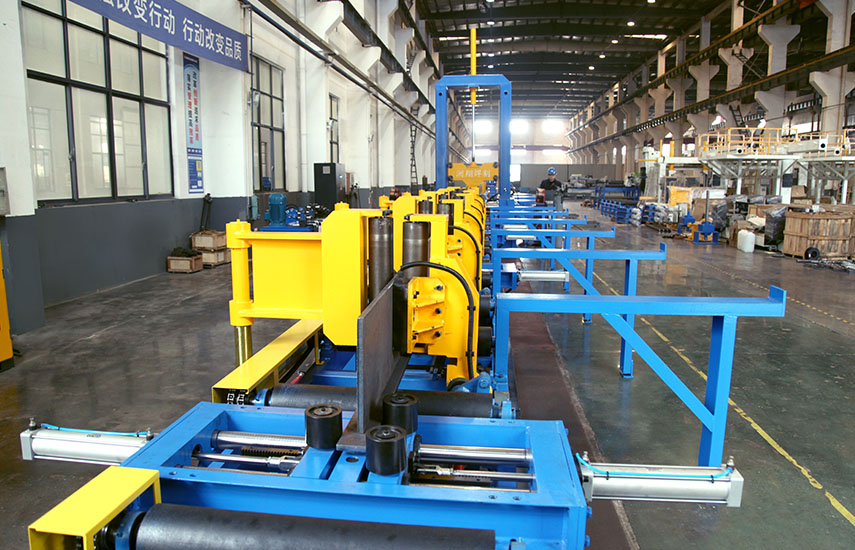

The flange plate and web plate are assembled into a T-shaped profile and securely positioned using pneumatic or hydraulic clamping systems. Advanced production lines can achieve a positioning accuracy of ±0.5 mm, ensuring precise dimensions and consistent product quality.

4. Welding

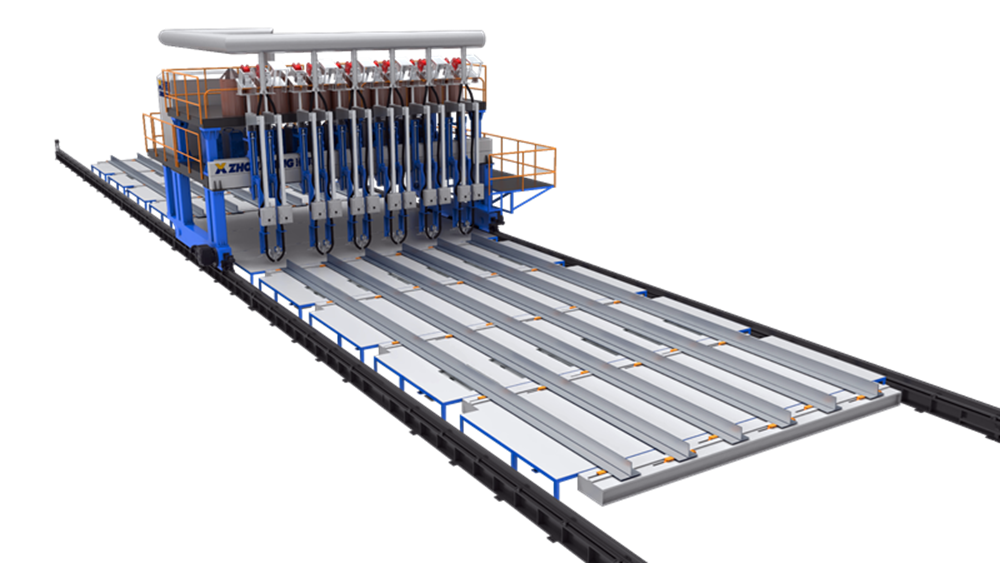

Welding is the core process of the production line. The assembled T-bars are welded using automatic welding equipment, such as multi-head gantry welding machines or robotic welding systems. Automated welding delivers higher productivity, consistent weld quality, and significantly reduces manual labor and welding distortion.

5. Straightening

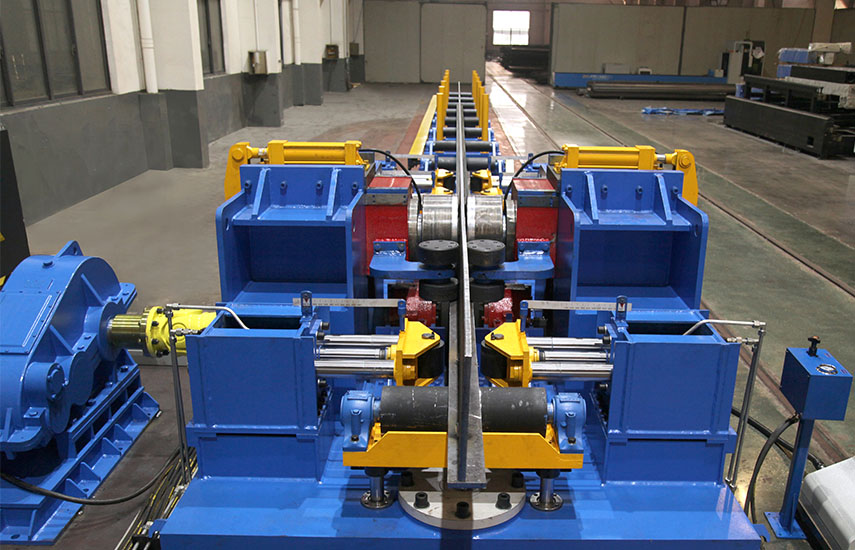

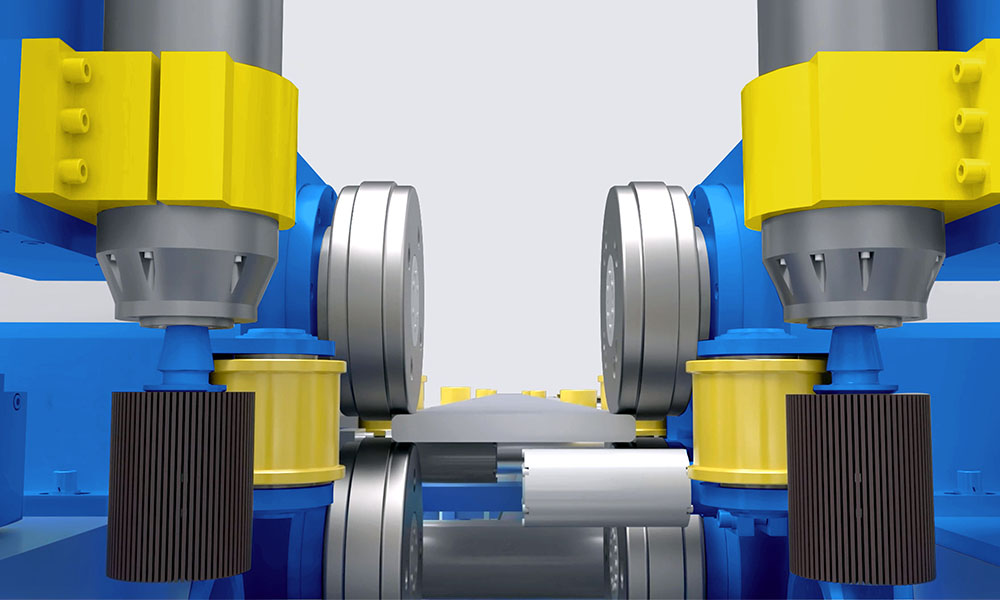

After welding, the T-bars may experience slight deformation due to thermal stress. A straightening machine is used to correct the distortion and restore the required flatness and straightness, ensuring that the finished products meet shipbuilding quality standards.
