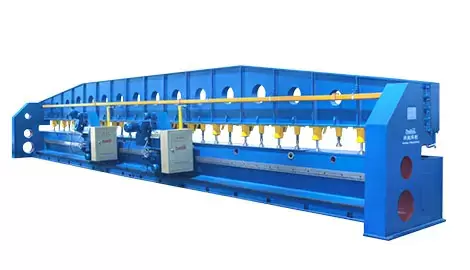

Edge Milling Machine
Supply Ability: 30 sets per month
Supply Ability: Shanghai
Payment Terms: T/T or L/C
Warranty: 1 Year
After-Sale Service: Engineers available to install and commission machinery overseas
Contact Us

Product Description

Product Introduction:

Compared with the traditional edge milling machines, this machine series is dismountable in their tracks, more rational in structure by heat-treatment of the bench, more reliable and stable in the milling & turning head`s running. The feed and feed-back systems are fully independent respectively. The feed and feed-back systems are fully independent respectively. The feed-back is quick and is highly efficient. The angle of the milling tool`s tray is convenient in adjustment, and the custom-built tool rest and the normal tool rest can beinter-converted. They are updated products of the traditional edge milling machine.

Technology Parameter:

The angle milling0-45°
thickness of steel plate6-50mm
Traveling speed of crosswise milling0.1-1m/min
Back stroke milling speed2m/min
The rev.speed of milling spindle80-400
The working pressure of hydraulic pressure system≤3.5 mpa
The numbers of the cylinders81115
The height between the platform and the ground900
The power of driving motor1.5kw
The power of milling motor5.5kw
The power of oil pump motor5.5kw
The overall size of the machine(mm)8680×2600×210011680×2600×230014200×2600×2400

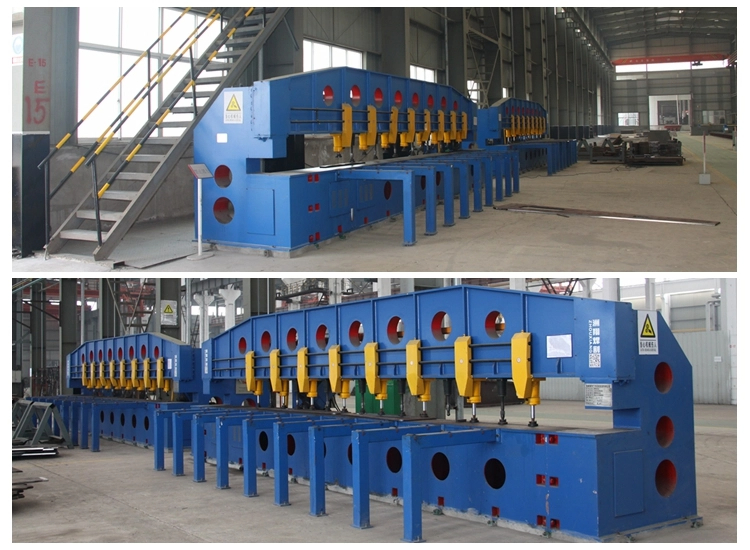

Product Details
